Axisflying M80Q GPS Module w/compass for FPV freestyle and LongRange

(0 review)

Brand: Axisflying

  1. Model: M80Q
  2. Sensitivity: -167 dBm tracking
  3. Start Time: Cold start in 26s; hot start in 1s
  4. Accuracy: 2.0 m horizontal
  5. Protocols: NMEA-0183 and UBX
  6. Temperature Range: -40 °C to +85 °C
Add to cart Buy now
Add to wishlist
Price
₹ 5,200.00 ₹ 5,200.00 (Tax included)

Click for  Terms and Conditions

MORE INFORMATION

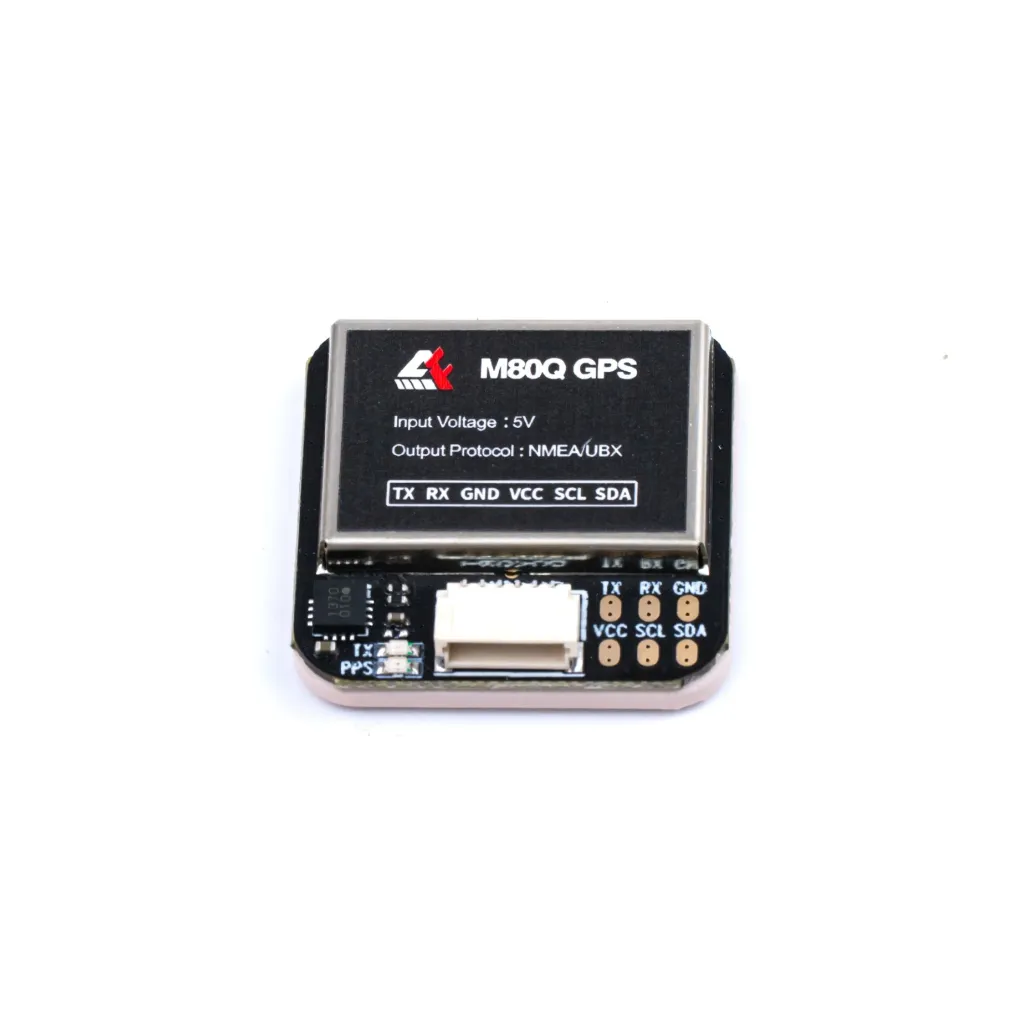

The Axisflying M80Q GPS Module is a high-performance navigation solution designed for FPV freestyle and long-range drone applications. Engineered for precision and reliability, this module features an integrated electronic compass, ensuring enhanced orientation and stability during flight.

Chip

M10(10th Generation Chip)

Frequency

BDS B1, ESBAS L1, GALILEO, GLONASS L1, GPS L1, QZSS L1

Input Voltage (V):

5V

Antenna (Y/N):

Ceramic Antenna

Channel

72

Battery

Bilid-in

Compass

QMC5883

Baud Rate

115200bps

Protocol

Dual NMEA/UBLOX

Output Frequency

1Hz-10Hz,10Hz default

Speed accuracy

0.05m/s

Horizontal Position Accuracy

2D ACC1.5m(outdoor)

Receiver Sensitivity

Trace -166dBm; Capture -160dBm

Shipping Weight0.015 kg
Shipping Dimensions13 × 9 × 2 cm

1 x Axisflying M80Q GPS Module w/compass for FPV freestyle and LongRange
