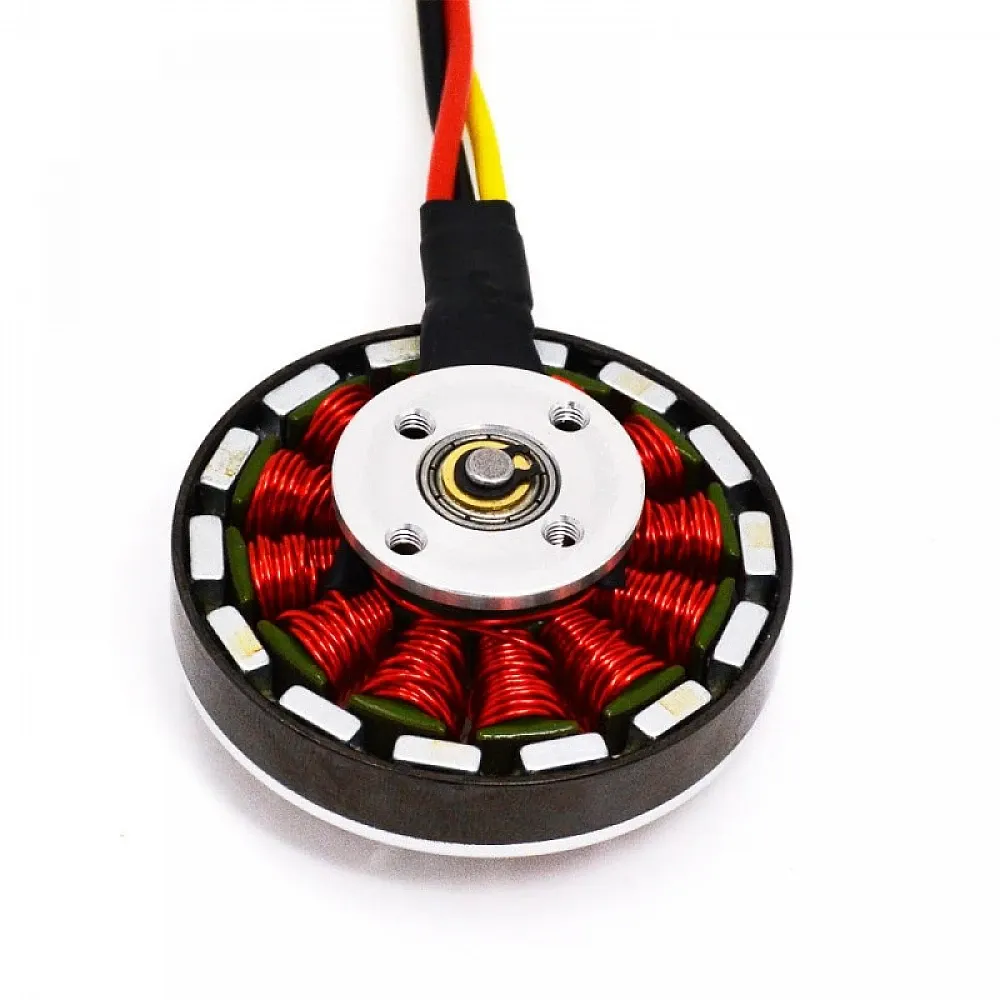

If you are planning to build a drone and are unsure which motor is best for your setup, worry no more — we’ve got you covered. The 5010 750KV High Torque Brushless Motor features self-cooling technology and can withstand high temperatures up to 140°C (356°F). When powered by a 4S LiPo battery, it can produce thrust of up to 1500 grams, making it suitable for high-lift drone applications. Built with NdFeB magnets and high-quality lubricated ball bearings, the motor delivers strong torque and a smooth flight experience. It supports 14″–16″ propellers, works with 2S–6S LiPo batteries using a 20A–40A ESC, and uses high-temperature winding wires and adhesives to prevent overheating and ensure long-lasting performance.
Feature
Details
Motor KV (RPM/V)
750
Motor Type
Brushless Motor
Compatible LiPo Batteries
2S to 6S
Required ESC (A)
20 ~ 40
Maximum Thrust (gm)
1500 @ 4S
Shaft Diameter (mm)
4
Compatible Prop (inch)
14 ~ 16
Length (mm)
50
Width (mm)
50
Height (mm)
10
Weight (g)
112
Shipping Weight
0.12 kg
Shipping Dimensions
5 × 4 × 2 cm
1 x 5010 750KV High Torque Brushless Motor for Drone
3 x Male Female Golden Connector Pairs with Heat Shrink Tube.
