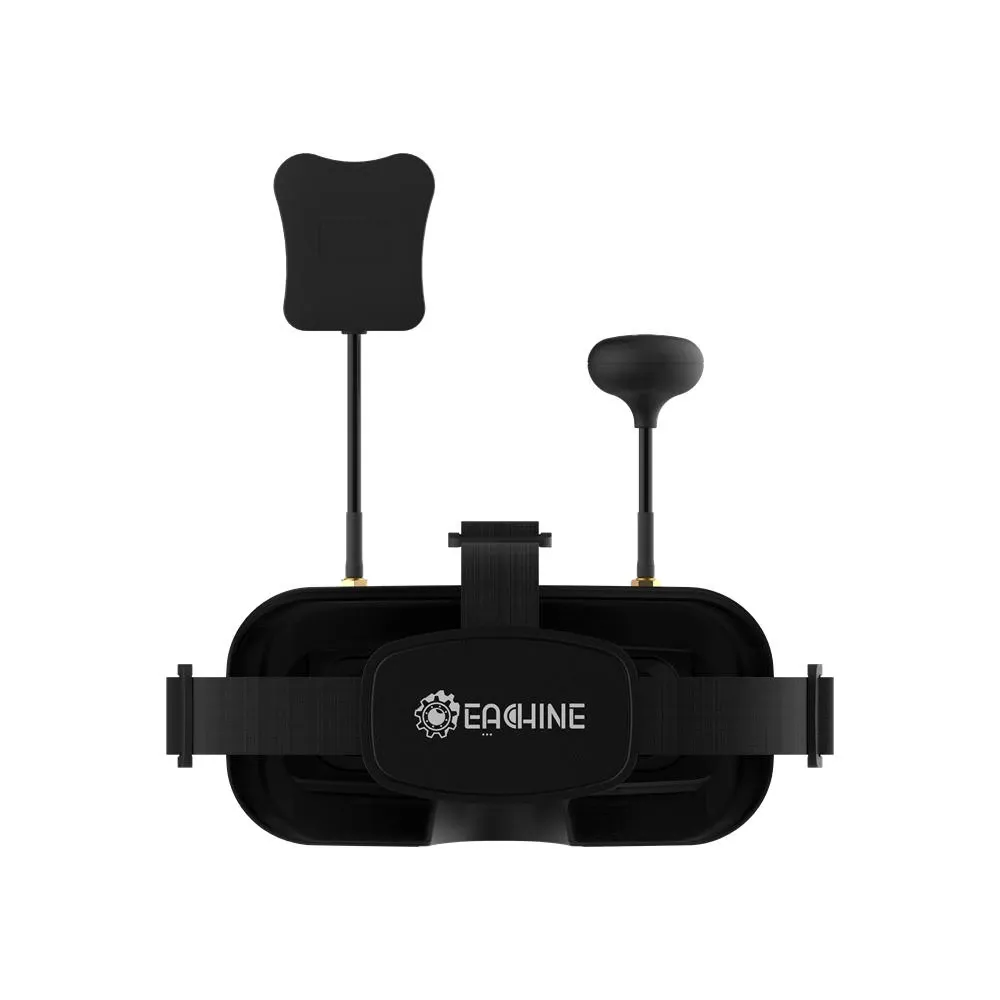

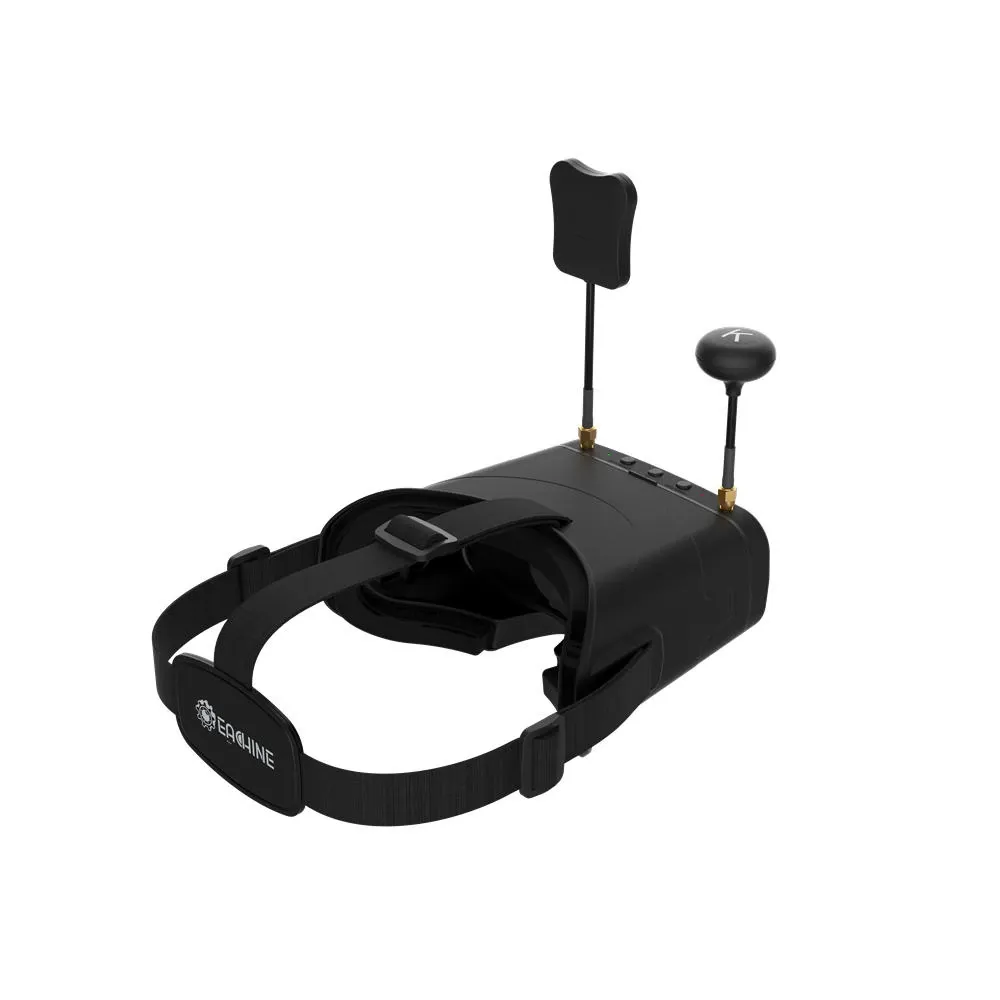

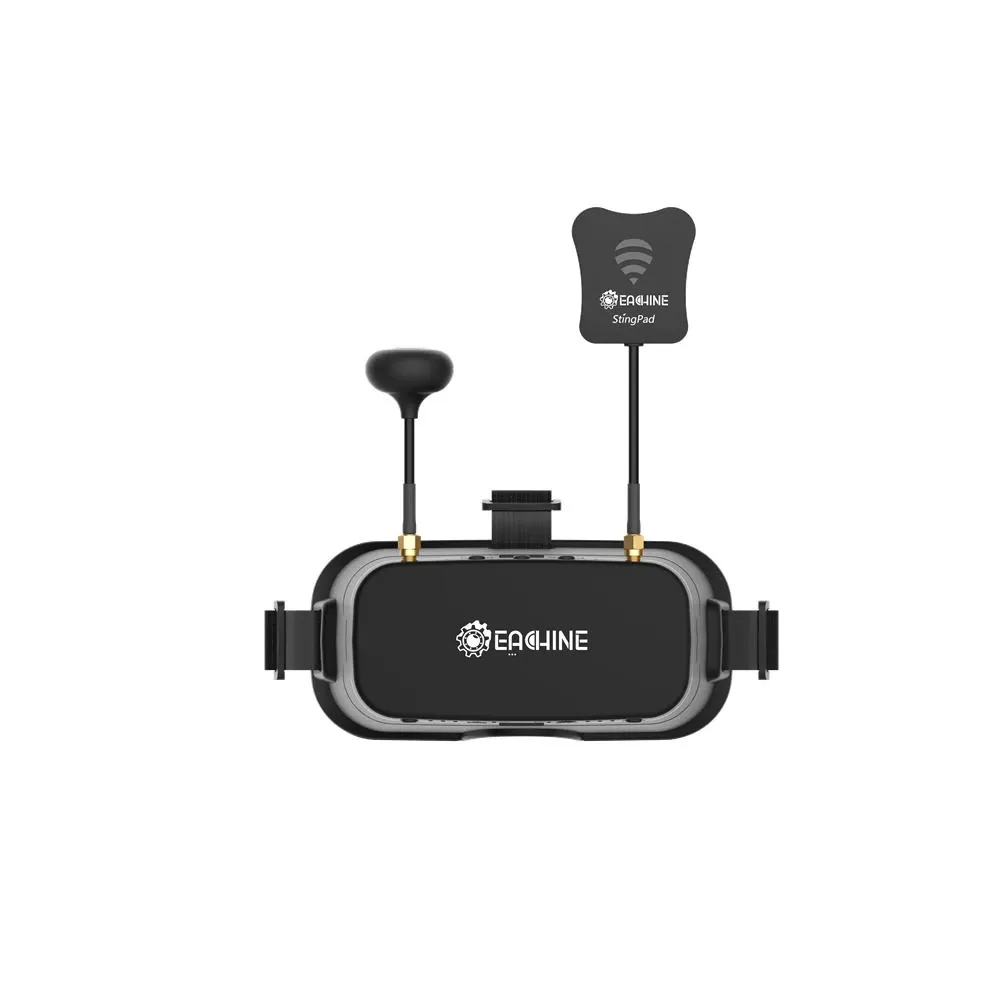

The Eachine EV800DM Varifocal FPV Goggles offer a versatile and immersive experience for drone enthusiasts and FPV pilots. Equipped with a varifocal lens, these goggles allow users to adjust the focal length, ensuring crystal-clear visuals tailored to individual preferences. This feature is particularly beneficial for those who wear glasses, providing a comfortable viewing experience without sacrificing image quality. With a 5.8G 40-channel diversity receiver, these goggles ensure stable and reliable transmission, minimizing signal interference for uninterrupted FPV flights.
In addition to its advanced optics, the EV800DM goggles boast a user-friendly design and ergonomic construction. The goggles feature a built-in DVR (Digital Video Recorder) function, allowing users to record their FPV flights directly onto a micro SD card for later review and sharing. The inclusion of a diverse receiver enhances signal reception, ensuring a more stable connection even in challenging environments. With its lightweight and comfortable design, along with its array of features, the Eachine EV800DM Varifocal FPV Goggles offer an immersive and customizable FPV experience for pilots of all levels.
| Appearance | Dimension: 150*170*80mm
Weight: 320g without antenna
Belt: three-way adjustable belt |
Specification | Built-in DVR
record up to 720*576px full frame rate video, no frame lost (C10 card required)
Replay in the MENU
Require a C10 card to record full frame rate |
Diversity | -90dB Super sensitivity in 2pcs RX5808 PRO modules
Great performance when two types (Linear and Omni) antennas are used |
Display | Screen size: 3.0 inch
Screen resolution: 900*600(No blur after enlarge by the lens)
Screen brightness: 600cd/m2 with special high-brightness backlight LED for outdoor FPV
Ratio: 4:3
View Angle: 140/120 degrees (Horizontal/Vertical) |
Lens | 3x boost of the video to acquire an intense feel-in-the-video;
92% transparent rate distorts in light; |
Varifocal | 20mm focal length adjustable;
Multi-stop points design for vertical individual user adjustment;
For more users with different eyesight |
Glasses Fit | Fit for wear with glasses;
Glasses Fit Size; 140mm*40mm;
The focal length needs to be reset when wearing glasses |
Battery | Built-in 3.8V/2000mAh battery;
Each battery circle offers around 2.2hr working time.
5-18V wide range recharging voltage range, typical recharging with 5V/2A
Charger : 5V, 2A, DC 2.5mm
2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time. |
Frequencies (5.8GHz, with RaceBand)
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP |
| A or FR1 | 5865 MHZ | 5845 MHZ | 5825 MHZ | 5805 MHZ | 5785 MHZ | 5765 MHZ | 5745 MHZ | 5725 MHZ |
| B or FR2 | 5733 MHZ | 5752 MHZ | 5771 MHZ | 5790 MHZ | 5809 MHZ | 5828 MHZ | 5847 MHZ | 5866 MHZ |
| C or FR3 | 5705 MHZ | 5685 MHZ | 5665 MHZ | 5645 MHZ | 5885 MHZ | 5905 MHZ | 5925 MHZ | 5945 MHZ |
| D or FR4 | 5740 MHZ | 5760 MHZ | 5780 MHZ | 5800 MHZ | 5820 MHZ | 5840 MHZ | 5860 MHZ | 5880 MHZ |
| R or FR5 | 5658 MHZ | 5695 MHZ | 5732 MHZ | 5769 MHZ | 5806 MHZ | 5843 MHZ | 5880 MHZ | 5917 MHZ |
