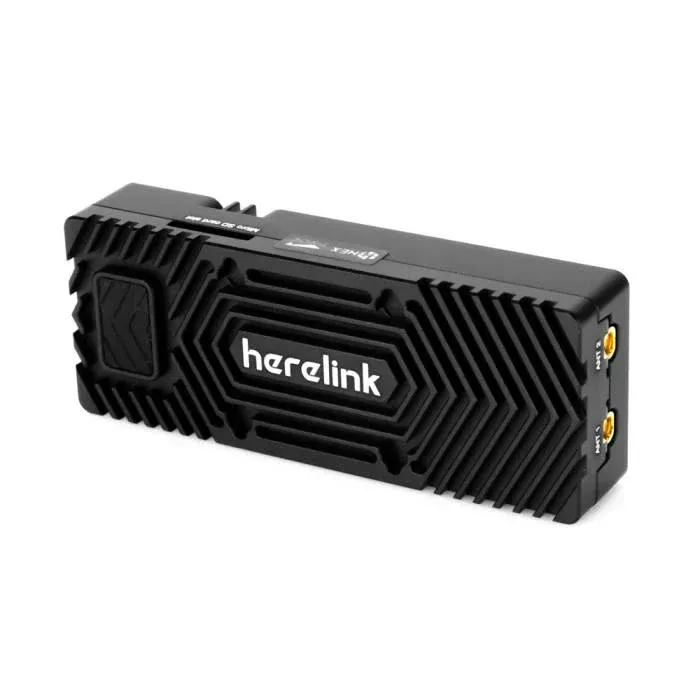

Herelink Air Unit V1.1

(0 review)

Brand: Cubepilot

This VTX unit features a signal transmission range up to 20KM
Minimum latency of 110ms
Two HDMI inputs, and supports 720p 30fps
1080p 30fps / 60fps video format.

Add to cart Buy now
Add to wishlist
Price
₹ 80,100.00 ₹ 80,100.00 (Tax included)

Click for  Terms and Conditions

MORE INFORMATION

Herelink V1.1 is the latest HD video transmission system from CubePilot. Herelink is an integrated remote controller, ground station, and wireless digital transmission system designed to be used with the Cube autopilot, Ardupilot, or PX4. Herelink allows RC control and HD video and telemetry data to be transmitted up to 20km between the Air Unit and Controller. The Herelink Controller features custom Solex TX and QGC applications. Both Air Unit and Controller feature an integrated 8 core SOC for custom application development.

Note: Please use the latest version of flasher_win to upgrade your Herelink V1.1 Controller and Herelink V1.1 Air Unit firmware.

Documentation

FeatureDetails
Case MaterialAluminum Alloy
Weight (antenna included)Herelink 1.1: 98 g
Size (mm)78.5 × 30 × 15
Signal Bandwidth20 MHz / 10 MHz
Power ConsumptionAverage power consumption does not exceed 4 W
Micro HDMI 1Camera video signal input (recommended)
Micro HDMI 2Camera video signal input
Power InputRecommended ~7 V (minimum 6 V, maximum 12 V); avoid sharing BEC with servos
UART Interface3.3 V UART
S.Bus InterfaceDual RC output; S.Bus1 and S.Bus2
Micro USBUsed for debugging and upgrading; supports OTG mode (no external power required)
ButtonUsed for pairing and state reset
Indicator Lights 1, 2Indicates pairing status and video transmission
MMCX Antenna Jacks 1, 2Used for signal transmission and ground communication

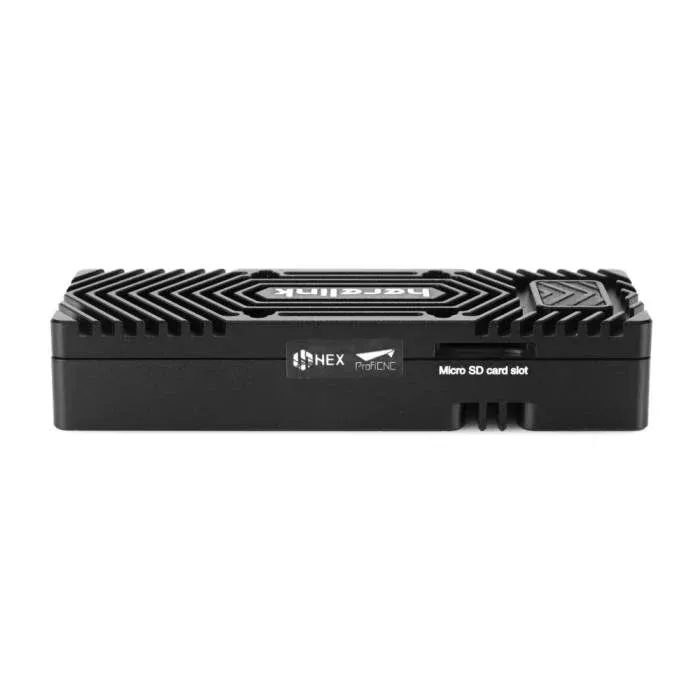

SD SlotFor future usage (only supported by Airunit 1.1)
ETH InterfaceNetwork protocol device access (only supported by Airunit 1.1)
1x Herelink HD Air Unit V1.1
1x Herelink Silicone Ring Set

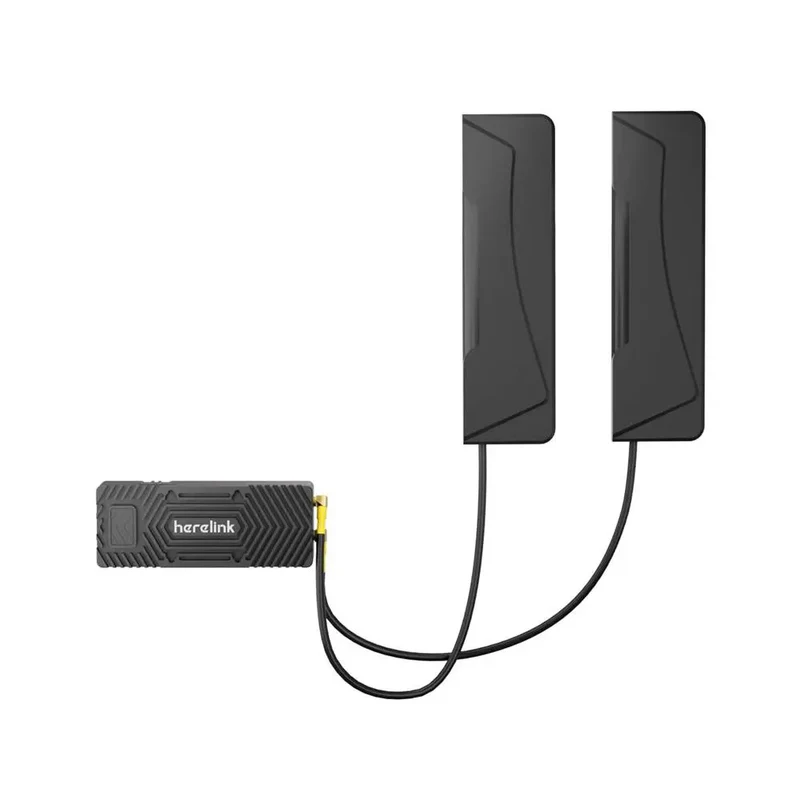

2x Herelink Taoglas Antenna
1x Herelink Set up tips card
1x Herelink Mounting Plate
1x Herelink HDMI Cable
1x Herelink Screw Set
1x Herelink Cable Set
1x Herelink Fan
