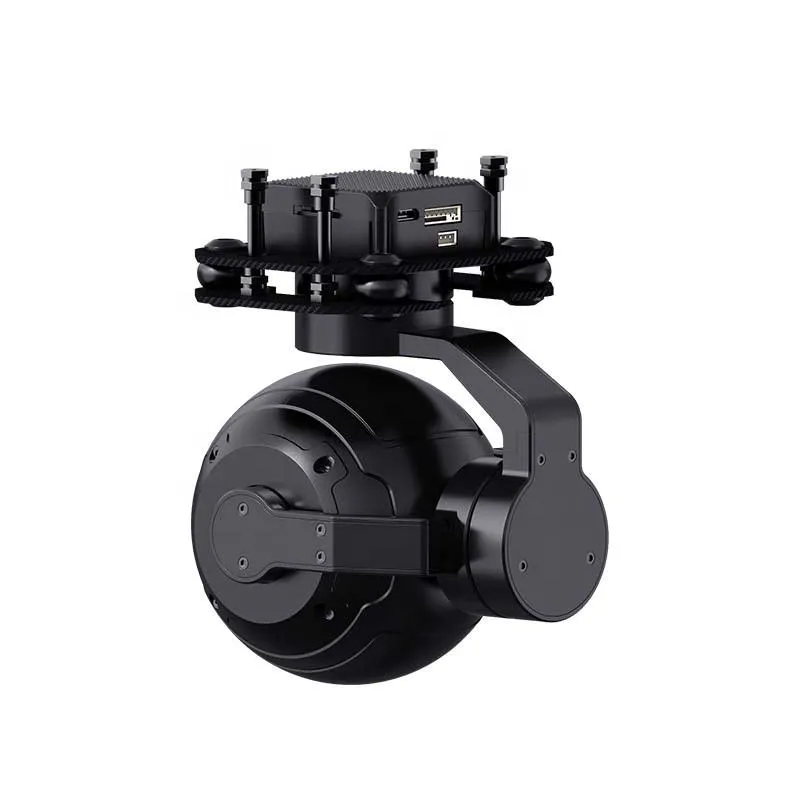

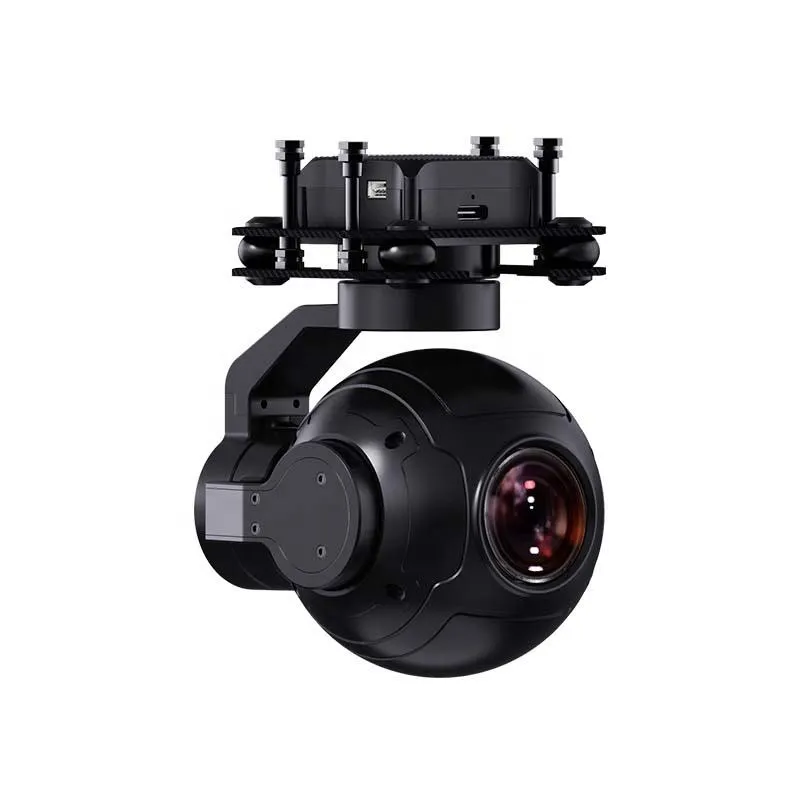

SIYI ZR10 Hybrid Zoom Gimbal Camera with HDR Starlight Night Vision 3-Axis Stabilizer

(0 review)

Brand: Siyi

30X Hybrid Zoom, 10X Optical Zoom

2K Quad HD Video & Photography

4MP 1/2.7-Inch CMOS

320-Degree Yaw Axis Rotation

Nose Mode

Upside Down Mode

Compatible with ArduPilot & PX4 (Mavlink)

High Accuracy & High Collaboration Control Algorithm

Add to cart Buy now
Add to wishlist
Price
₹ 60,000.00 ₹ 60,000.00 (Tax included)

Click for  Terms and Conditions

MORE INFORMATION

The SIYI ZR10 Hybrid Zoom Gimbal Camera is a high-performance imaging solution designed for professional UAV applications. Featuring HDR starlight night vision and a 3-axis stabilized gimbal, it delivers smooth, clear, and detailed visuals in both day and low-light conditions. With its hybrid zoom capability, the ZR10 is ideal for aerial inspection, surveillance, search and rescue, and long-range monitoring tasks.

Overall

FeatureDetails
Video Output PortEthernet
Control Signal Input PortsS.Bus, UART, Ethernet (UDP / TCP)
Stabilization SystemHigh-Accuracy 3-Axis Stabilization (Yaw, Pitch, Roll)
Working Voltage11 – 25.2 V (3S–6S LiPo)
Power ConsumptionAverage: 4 W · Peak: 12 W
Working Temperature−10°C to +50°C
Dimensions (mm)121 × 101 × 78
Weight381 g

Gimbal

FeatureDetails
Angular Vibration Range±0.01°
Controllable Pitch Angle−135° to +45°
Controllable Yaw Angle−160° to +160°
Roll Angle−30° to +30°

Camera

FeatureDetails
Lens10× Optical Zoom (30× Hybrid Zoom)
Focal Length5.2 – 47.4 mm (±5%)
Image Sensor1/2.7″ CMOS
Effective Resolution4 MP
ApertureF1.8 – F2.5 (±5%)
Field of View (No Zoom)Diagonal 79.5° · Horizontal 71.5°
Field of View (10× Zoom)Diagonal 7.7° · Horizontal 6.7°
Video Recording Resolution2K (2560×1440) @30fps
1080p @30fps
720p @30fps
Video Bitrate12 Mbps (H.265)
Image FormatJPG
Video FormatMP4
Storage FormatFAT32 / exFAT
Supported MicroSD CardsClass 10, up to 32 GB
Photography ModeSingle Shot
Metering ModeEvaluative
White BalanceAutomatic

1X SIYI ZR10 Hybrid Zoom Gimbal Camera with HDR Starlight Night Vision 3-Axis Stabilizer
