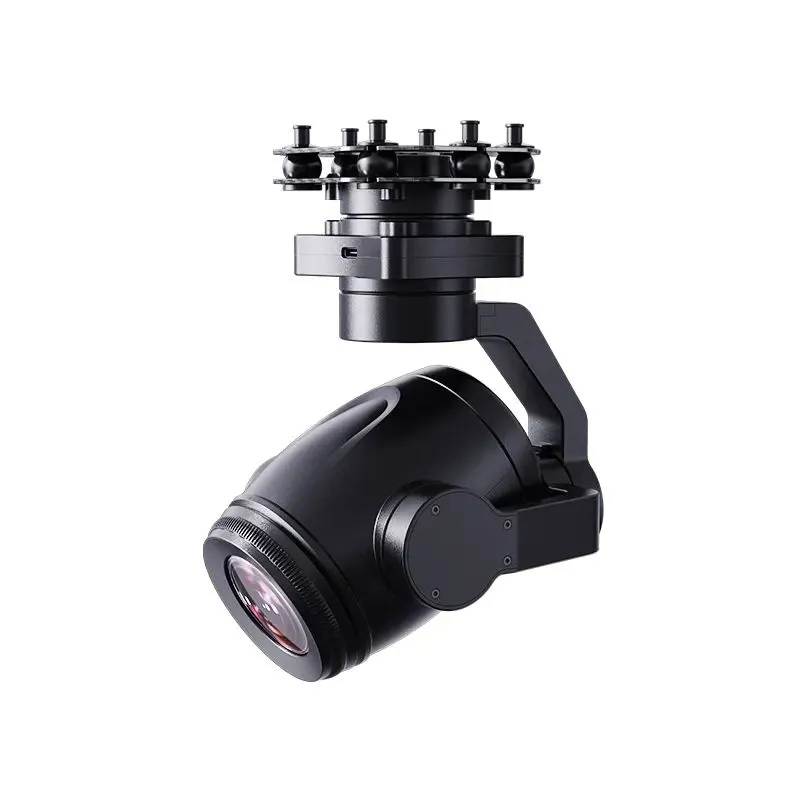

SIYI ZR30 Optical Zoom Gimbal Camera

(0 review)

Brand: Siyi

Image Sensor: 1/2.7 Inch, 8 MP effective resoultionAperture: F1.3±5% to F2.8±5%FOV: Horizontal 58.1°TF Recording Resolution:

– 4K (4096 x 2160) @ 25 fps

– 2K (2560 x 1440) @ 30 fps

– 1080p (1920 x 1080) @ 30 fps

– 720p (1280 x 720) @ 30 fpsVideo Storage Bitrate: 12 Mbps (H.265
codec)File Storage Format: FAT32

Image Format: JPG
Video Format: MP4

Supported MicroSD Cards: MicroSD Class10, Max 128GBStill Photography Mode: SingleMetering Mode: Evaluative metering

Add to cart Buy now
Add to wishlist
Price
₹ 1,35,000.00 ₹ 1,35,000.00 (Tax included)

Click for  Terms and Conditions

MORE INFORMATION

The ZR30 Optical Zoom Gimbal Camera is a high-performance imaging solution designed for clear and stable long-range viewing. Equipped with a precision 3-axis stabilized gimbal and a powerful optical zoom lens, it delivers smooth, detailed imagery even when capturing distant subjects. Ideal for professional applications such as aerial inspection, surveillance, wildlife observation, and photography, the ZR30 ensures reliable performance and high-quality magnified visuals.

Overall

FeatureDetails
Video Output PortsEthernet, Micro-HDMI
Control Signal Input PortsS.Bus, UART, Ethernet (UDP/TCP)
Stabilization SystemHigh-Accuracy 3-Axis Stabilization (Yaw, Pitch, Roll)
Working Voltage11 – 25.2 V (3S–6S LiPo)
Power ConsumptionAverage: 5 W · Peak: 12 W
Waterproof LevelIP4X
Working Temperature−10°C to +50°C
Dimensions132 × 100 × 180 mm (Quick-Release Board Included)
Weight668 g (Quick-Release Board Included)

ZR30 Quick-Release Board

FeatureDetails
Dimensions82 × 65 × 20 mm
Weight38 g

Gimbal

FeatureDetails
Angular Vibration Range±0.01°
Controllable Pitch Angle−90° to +25°
Controllable Yaw Angle−270° to +270°
Roll Angle−45° to +45°

Camera

FeatureDetails
Lens30× Optical Zoom (180× Hybrid Zoom)
Focal Length4.5 – 148.4 mm (±5%)
Image Sensor1/2.7″ Sony CMOS
Effective Resolution8 MP
ApertureF1.3 – F2.8 (±5%)
Field of View (No Zoom)Diagonal 65.4° · Horizontal 58.1°
Field of View (30× Zoom)Diagonal 2.5° · Horizontal 2.1°
Video Recording Resolution4K (4096×2160) @25fps
2K (2560×1440) @30fps
1080p @30fps
720p @30fps
Still Photo Resolution4K (3840 × 2160)
Video Bitrate12 Mbps (H.265)
Supported File SystemFAT32 / exFAT
Image FormatJPG
Video FormatMP4
Supported MicroSD CardsClass 10, up to 128 GB
Photography ModeSingle
Metering ModeEvaluative
White BalanceAutomatic

1 x ZR30 Optical Pod

1 x ZR30 Quick Release Board

1 x MK15 / HM30 Air Unit S.Bus Y Cable

1 x 3 in 1 Control Cable

1 x SIYI Gimbal Power Cable

1 x SIYI Gimbal Ethernet Cable

1 x SIYI Gimbal to SIYI Link Cable

1 x SIYI Gimbal Ethernet to RJ45 Cable

1 x SIYI Gimbal Ethernet to RJ45 Cable

1 x ZT30 / ZR30 Screw Pack
