Pixhawk 2.4.8 Full Combo Set with GPS, PX4/APM Flight Controller

Pixhawk 2.4.8 Full Combo Set with GPS, PX4/APM Flight Controller

(0 review)

Brand: ReadytoSky

The Pixhawk 2.4.8 Full Combo Set is a comprehensive 32-bit autopilot system designed for DIY drones, fixed-wing aircraft, and other robotic platforms. It is compatible with both PX4 and ArduPilot (APM) firmware, offering versatile control for autonomous missions.

Add to cart Buy now
Add to wishlist
Price
₹ 13,000.00 ₹ 13,000.00 (Tax included)

Click for  Terms and Conditions

MORE INFORMATION

The Pixhawk 2.4.8 Combo Set with GPS provides advanced flight control, GPS navigation, and enhanced stability. It is ideal for drones because it supports PX4/APM, enabling precise autonomous missions and real-time telemetry. Complete with all essential modules.

Features:

  • Supports fully autonomous stabilization and waypoint-based navigation
  • 32-bit ARM Cortex M4 running NuttX RTOS ensures fast and reliable operations.
  • NEO-M8N GPS module with 72-channel Ublox engine provides precise location tracking and real-time navigation.
  • Unix/Linux-like environment for running multiple tasks and handling complex flight commands.
  • Two-way communication enables real-time monitoring and adjustments during flight.
FeatureSpecification Details
Processor32-bit ARM Cortex M4 (STM32F427) with FPU
Co-Processor32-bit STM32F103 (Fail-safe backup)
Operating SystemNuttX RTOS (Unix/Linux-like multi-threading)
GPS ModuleNEO-M8N (72-channel Ublox engine)
Firmware SupportPX4 and ArduPilot (APM)
SensorsL3GD20 (Gyro), MPU6000 (Accel/Gyro), MS5611 (Barometer)
RAM / Flash256KB RAM / 2MB Flash
NavigationFully autonomous stabilization & waypoint-based missions
TelemetryTwo-way real-time monitoring and adjustment
Interfaces5x UART, 2x CAN, I2C, SPI, 14x PWM outputs
Receiver CompatibilityPPM, S.Bus, DSM/DSM2/DSM-X
StorageMicroSD card slot for high-frequency data logging

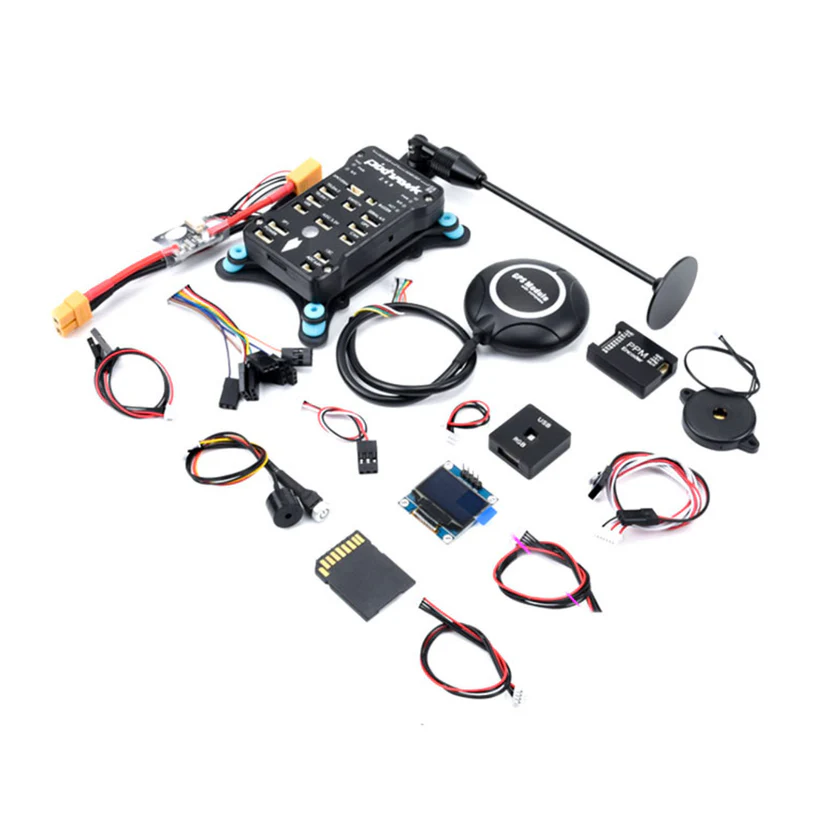

  • 1 x Pixhawk 2.4.8 FC
  • 1 x Buzzer
  • 1 x Safety Switch
  • 1 x Power Module
  • 1 x PPM
  • 1 x I2C
  • 1 x Shock Absorber Board
  • 1 x SD Card
  • 1 x Neo-M8N GPS
  • 1 x GPS Holder
  • 1 x OSD OLED Display
  • 1 x DF13 4/5/6 Pin Cable
  • 1 x RGB module
