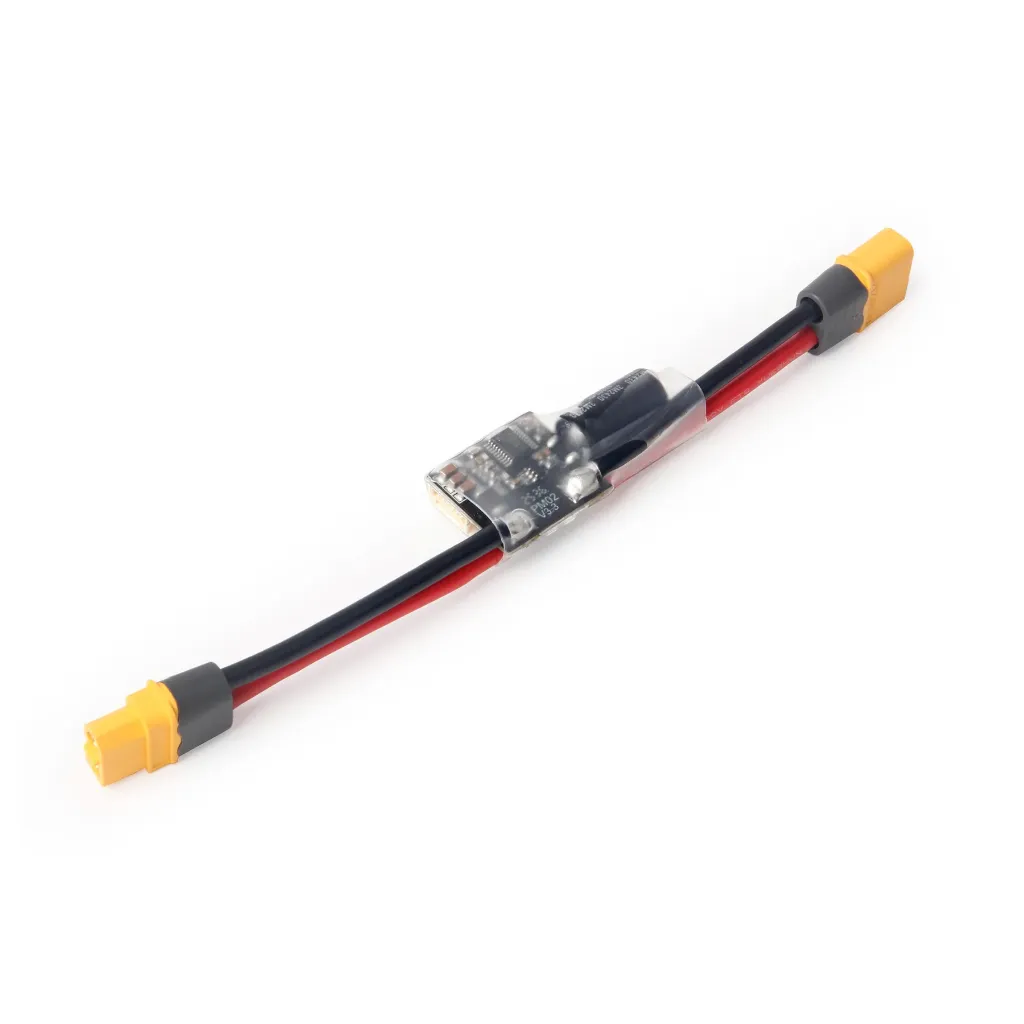

The PM02 Power Module provides clean and stable power to APM and Pix32 flight controllers while simultaneously monitoring battery voltage and current consumption through a single 6-pin cable. It features an onboard switching regulator delivering 5.2V up to 3A, supporting LiPo batteries up to 12S. Supplied fully assembled with XT60 connectors and protective heat-shrink tubing, it is designed to power flight controllers, RC receivers, and accessories such as GPS and radio modules (not suitable for servos). The GH terminal is compatible with Pix32, Pixhawk 4, Pixhawk 4 Mini, and Durandal.
Note: This module uses analog output and is not compatible with Pixhawk 5X (digital PM required).
- The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
- This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).
