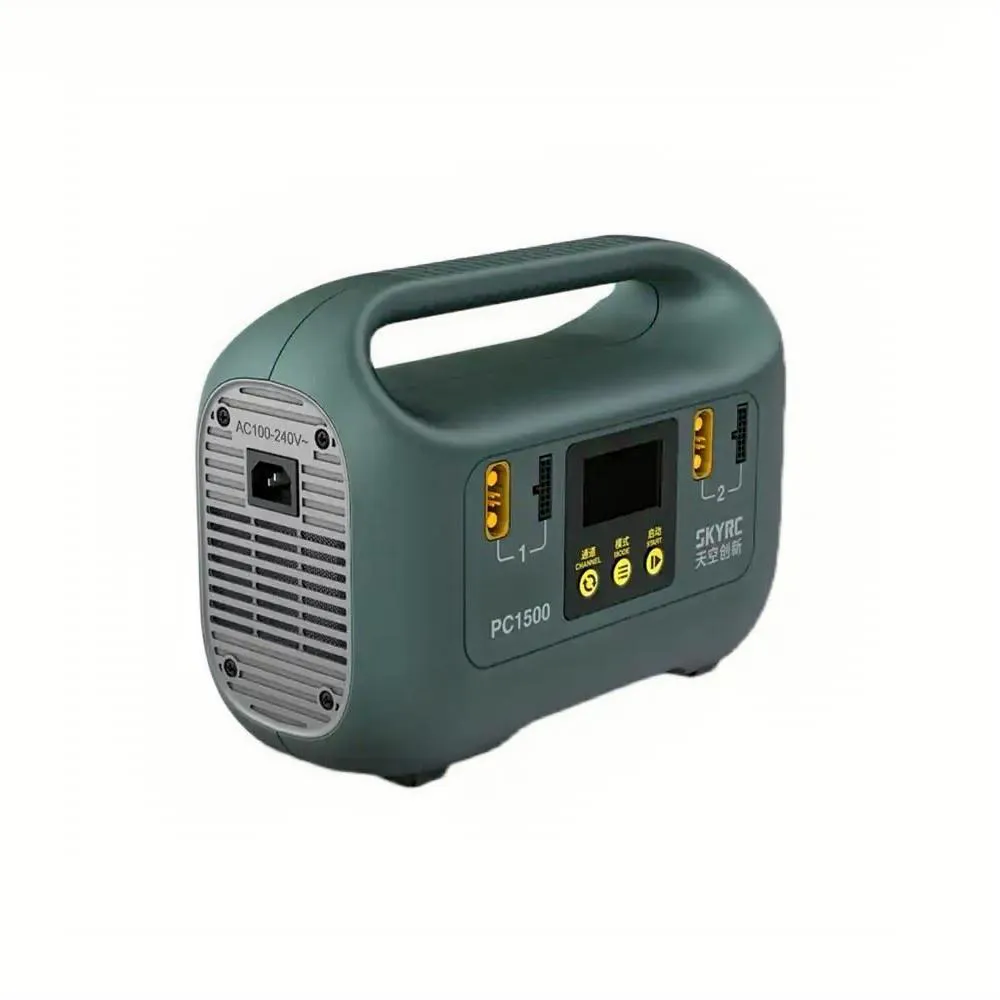

The dual-channel 12S/14S LiPo charger is designed for industrial drones, offering reliability, safety, and ease of use with a full range of features including a battery voltage meter, internal resistance meter, LiHV charging mode, and a synchronization mode for efficiency.
Capable of balance charging two 12-cell battery packs at once, it is tailored for large battery packs. The PC1500 model includes enhanced protection with Conformal Coating, an anti-corrosion paint that safeguards the vital circuitry against harsh conditions such as moisture, mildew, and smoke corrosion, ensuring the charger’s dependability and stability for outdoor use.
Additionally, it has Multiple Protection functionality for Short Circuit Protection, Reverse Polarity Protection, and Over-temperature Protection, and Customers can rest assured of our quality, safety, and reliability
PC1500 is a smart charger that integrates CAN communication for smart batteries and ordinary lithium batteries. It can connect two batteries at the same time. The charger's maximum output power is up to 1500W, with three modes of Fast(Fast Charge)/Charge(Slow Charge)/Storage. The charger can recognize the batteries with customized CAN communication instantly. Charging operation is convenient and straightforward, and a better user experience is delivered.Fast Charge Easy Operation Safety & Protection Over-temperature
Protection Short Circuit
ProtectionIntuitive Operation InterfaceRoutine charging is made easy by the simple and intuitive interface, with the operation procedure simplified. Users only need to select Fast(Fast Charge)/Charge(Slow Charge)/Storage and press the Start button to get the job started. LCD Display
Real-time charging data at a glance! During the charging process, the display screen displays charging time, battery power percentage, and every single cell's voltage in real-time. High Performance With Dual Channels With high-power and dual channels, two batteries can be charged simultaneously in slow charging mode at a maximum charging power of 1500W.
Go parallel, one step faster!1500WCAN Bus ReadyPC1500 charger comes with the built-in CAN Bus communication. It can charge both smart batteries and common lithium batteries with balance ports in different circumstances.CAN
PORTPre-charge Function
to Extend Battery Life, the charger can detect the battery pack's overall voltage through the balance port and intelligently adjust the charging current according to the battery voltage. Optimal Design Through the Convection Air Duct. The wing blade design reduces noise, provides high-wind performance, and significantly improves heat dissipation efficiency. High-quality Ventilator, Effectively Filtering Dust and Sediment. Ventilators are mounted at the end of the fan convection. They are a detachable design, easy to remove and clean: dust, sand, and other harmful substances are effectively filtered.PC1500 is highly optimized in structure, pursuing a better volume-to-power ratio. The size is compact, but its function is powerful and easy to carry. Compact but Powerful, Innovative Circuit Design, and More Optimized Algorithm. Efficiency is significantly improved, and reliability is increased. Stability and durability are ensured through the stunning modular industrial design, considerate space layout, and selection of well-known brand components. Better Protection With Conformal CoatingAnti-corrosion paint is applied to protect the key circuit's electronic components from extreme environments like moisture, mildew, and smoke corrosion. The charger's reliability and stability are ensured for outdoor work. Go Green with Active PFC Universal AC input
Innovative active PFC
Industrial-grade Power Management
Conversion Rate: UP to 93%
Active PFC uses circuitry to correct the amount of power drawn to obtain the best ratio of power factor, achieving high efficiency, 93%. Which makes the product more stable and reduces the interference to the power grid.No PFC Circuit
AC Input Power:
100%
Output Conversion Rate:
70%PC1500 with PFC Circuit
AC Input Power:
100%
PFC Output Conversion Rate:
93%Great Technical SupportWith years' expertise in power systems and accumulated architectural improvements, the software has been optimized to make the charger output current more stable and reliable. Multiple Protection: Short Circuit Protection
Reverse Polarity Protection
Over-temperature Protection
