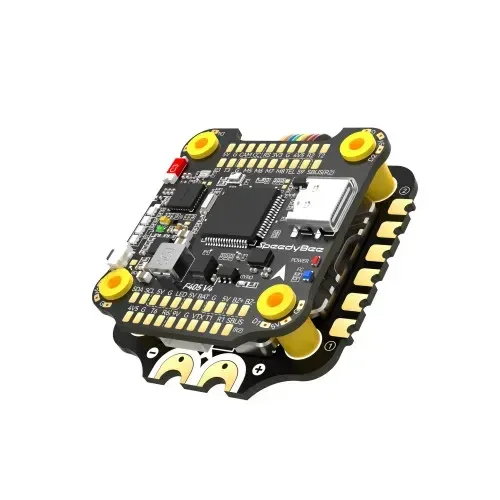

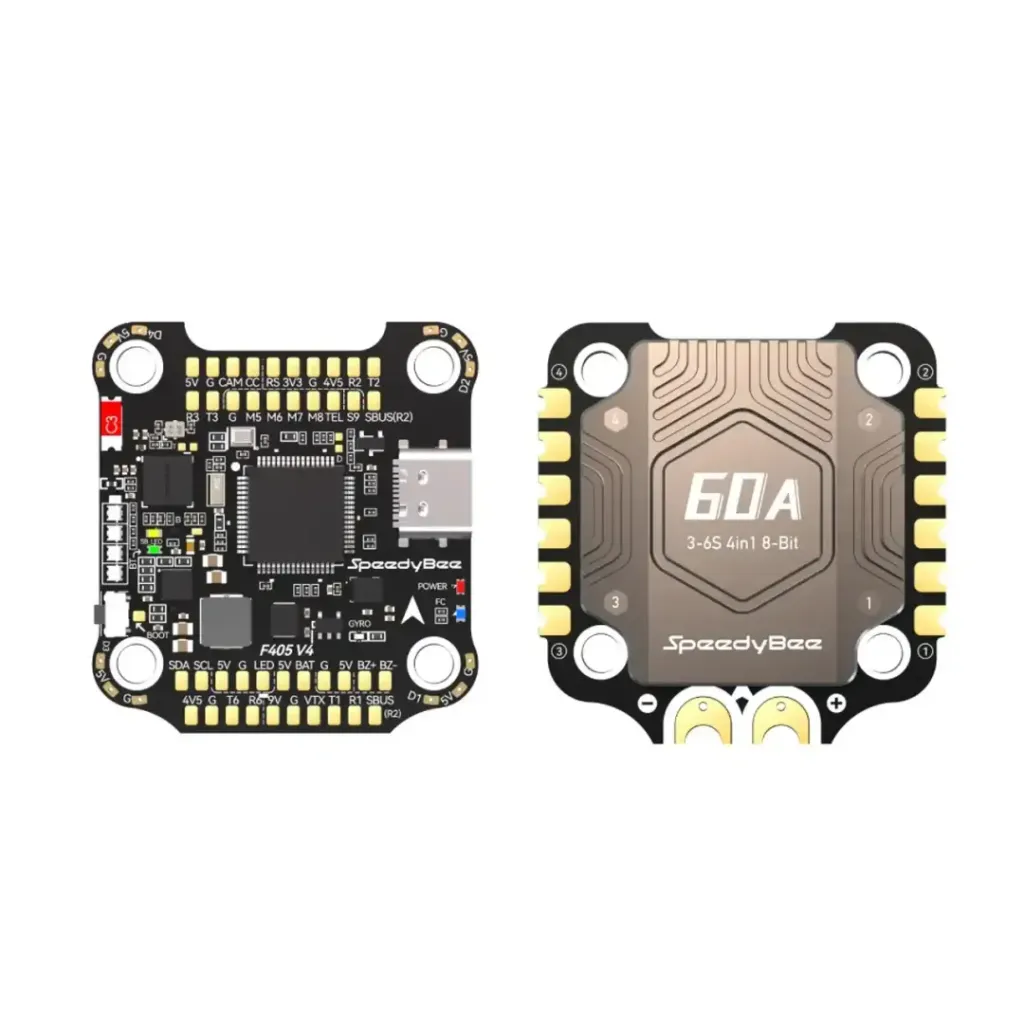

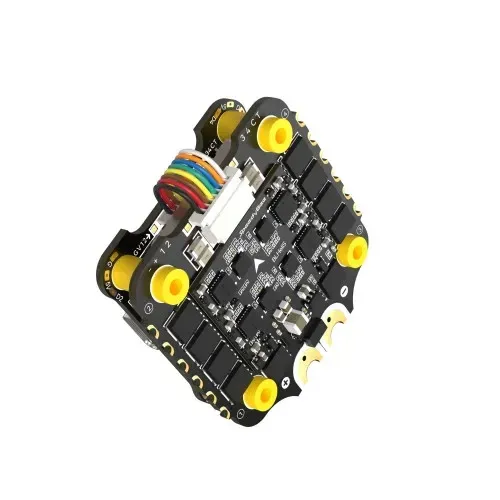

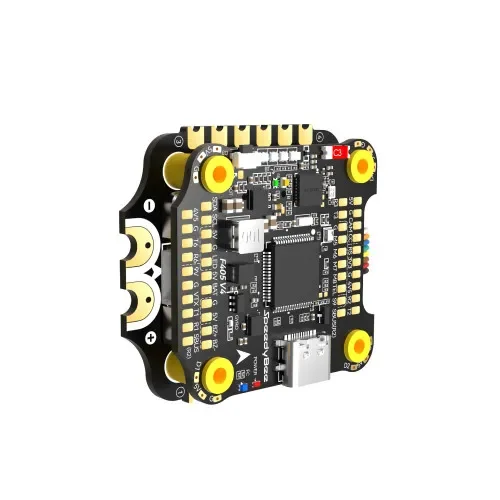

SpeedyBee F405 V4 BLS 60A 30×30 FC&ESC Stack

The SpeedyBee F405 V4 BLS 60A 30×30 FC & ESC Stack is a high-performance solution designed for advanced FPV racing and freestyle drones. Combining a powerful F405 flight controller with a 60A BLHeli_S ESC, it delivers fast response, stable flight control, and reliable power handling, making it ideal for demanding FPV setups.

$75.99 for a Bluetooth 60A Stack?

That's ridiculousI know right? With only $75.99, you will get an STM32F405 FC (better than F411), onboard 4-level battery life indicator, 4GB Blackbox SD card slot for your flight logs, 4 groups of LED strip pads, complete with a DJI plug for your digital quad, and built-in Bluetooth for wireless configuration on the SpeedyBee app. Don’t forget about the powerful 60A 4-in-1 ESC, built with aluminum alloy heat sink + TVS protective diode + high-quality SMD filtering capacitors + external 1000uF low ESR capacitor, everything is for durable build and smooth flight.All of that for only $75.99! Top-shelf spec at a crazy low price, what are you waiting for?* The DJI Air Unit plug is completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.Configure your FC and ESC via Bluetooth!With SpeedyBee app, turn your phone into an all-in-one FC configurator and tune your quad anytime, anywhere. Enjoy wireless, fully configurable ESC experience with SpeedyBee appESC upgraded to 60A with heat sink.The PCB design has been refined, with copper thickness increased from 2 to 3 ounces and enhanced MOSFET specifications. Continuous current now reaches 240A across all channels, peaking at 320A for 10 seconds. An added aluminum alloy heat sink ensures efficient MOSFET heat dissipation for stable ESC output. It delivers a genuine 60A output, primed for your baddest high-powered 6S motors.ICM42688P Gyro and clean

power supply.Featuring MaxLinear's esteemed LDO power chip, the gyroscope gets dedicated power, enhancing surge protection by 320%. A 100uF filtering tantalum capacitor shields gyro data from power interferences. This ensures precise flight responsiveness, letting you truly savor the joy of flying!Forgot your LiPo checker?

Just look at the FC!On the side of the flight controller, you will find a 4-level battery capacity indicator. As soon as you connect the battery, you can instantly see the battery level, saving you the hassle of needing to put on glasses to check the battery status.SD card compatibility issue fixed!The F405 V3 FC faced compatibility issues with certain microSD cards, with a few even occasionally affecting the stable OSD display. The improved F405 V4 flight controller, however, addresses these challenges. It reliably supports C4, C6, C10, and higher cards at 2k/4k logging rates.BF/INAV can recognize up to 4GB of black box space. Once you clear the SD card, you can enjoy 1000+ flights. Experience black box freedom like never before!Change motor directions wirelessly!Are you still using a computer to change motor directions? With this stack, when you finish your build, connect to the SpeedyBee app, change the motor directions just in a few simple steps*. Then take off.* To use this feature, please go to the App > Motors > Motor Direction Settings.8 motors output for X8/Y6You could use this stack to build your X8 drones and Y6 drones . Forget about crawling through your massive build just to plug in that USB cable. Just take out your phone to configure everything in the SpeedyBee app.4 sets of LED pads with simple switching.Need more visibility at night? Just solder up your LED strips* and blaze the darkest trail you can find. With just one tap on the BOOT button, you can cycle through all different LED presets** and pick the one you love!* LED strips could be purchased here

**Or long press the boot button to switch to Betaflight LED mode.TVS Protective Diode + 20 Onboard Filtering Capacitors + 1000uF High-Capacity Electrolytic Capacitor = Upgraded ESC ProtectionWe've included a TVS diode that effectively absorbs voltage spikes during power-up and crash events. The board features 20 high-quality SMD filtering and energy storage capacitors. These, along with the standard 1000uF high-frequency, low-ESR electrolytic capacitor, effectively filter out signal interference from the power supply to the flight controller's gyroscope, ensuring smoother flight performance.And packaged with more useful features.● Built-in barometer for accurate height calculation

● SD card slot can support up to 4GB Blackbox data*

● Dedicated DJI Air Unit connector for a quick digital build

● 5V & 9V Dual BECs now upgraded to both 3A output

● 4 x UARTs for your receiver + VTX + camera + GPS

● Power your GPS with a USB cable - no battery needed,

No extra heat, no worries

● 22mm cutouts for FPV camera in your tight build*Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB, so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the microSD card MUST be formatted with the FAT16 or FAT32 (recommended) format, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum. We suggest you use this 3rd party formatting tool and choose 'Overwrite format' then format your card. Also check out here for the recommended SD cards or buy the tested cards from our store.
