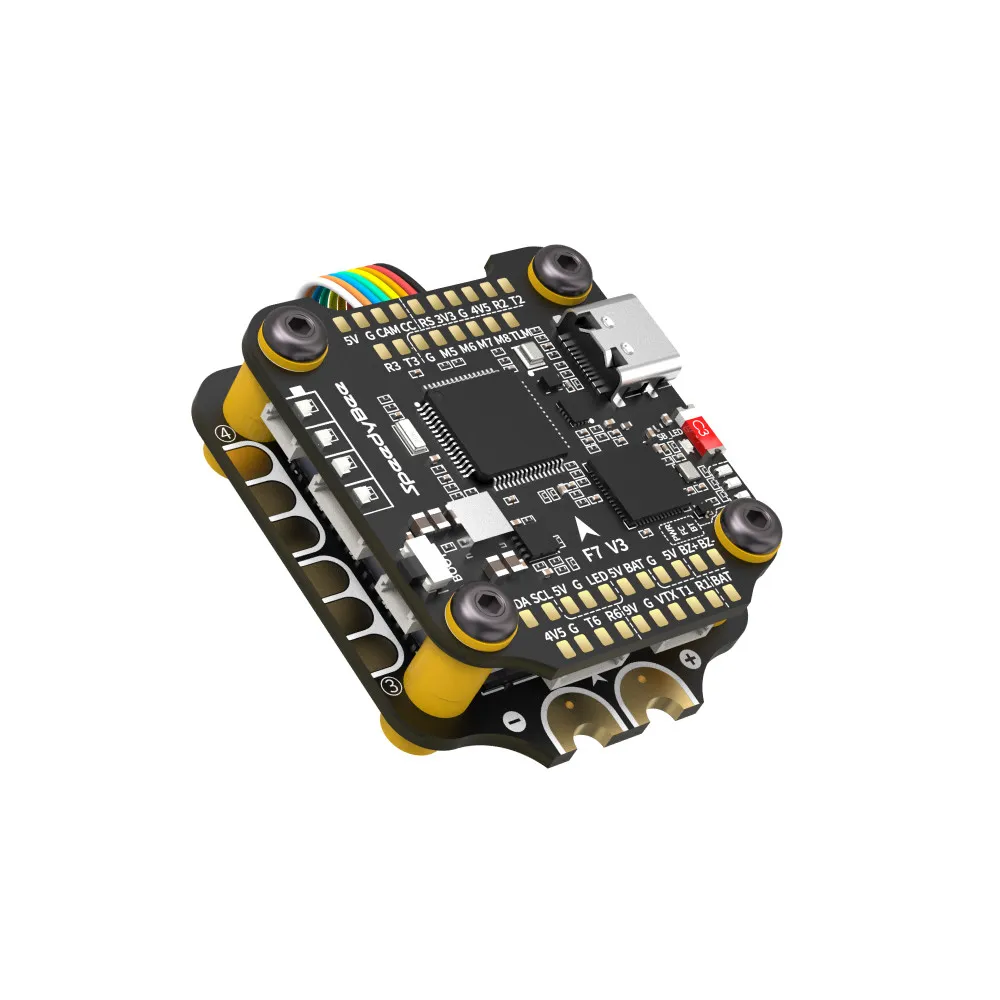

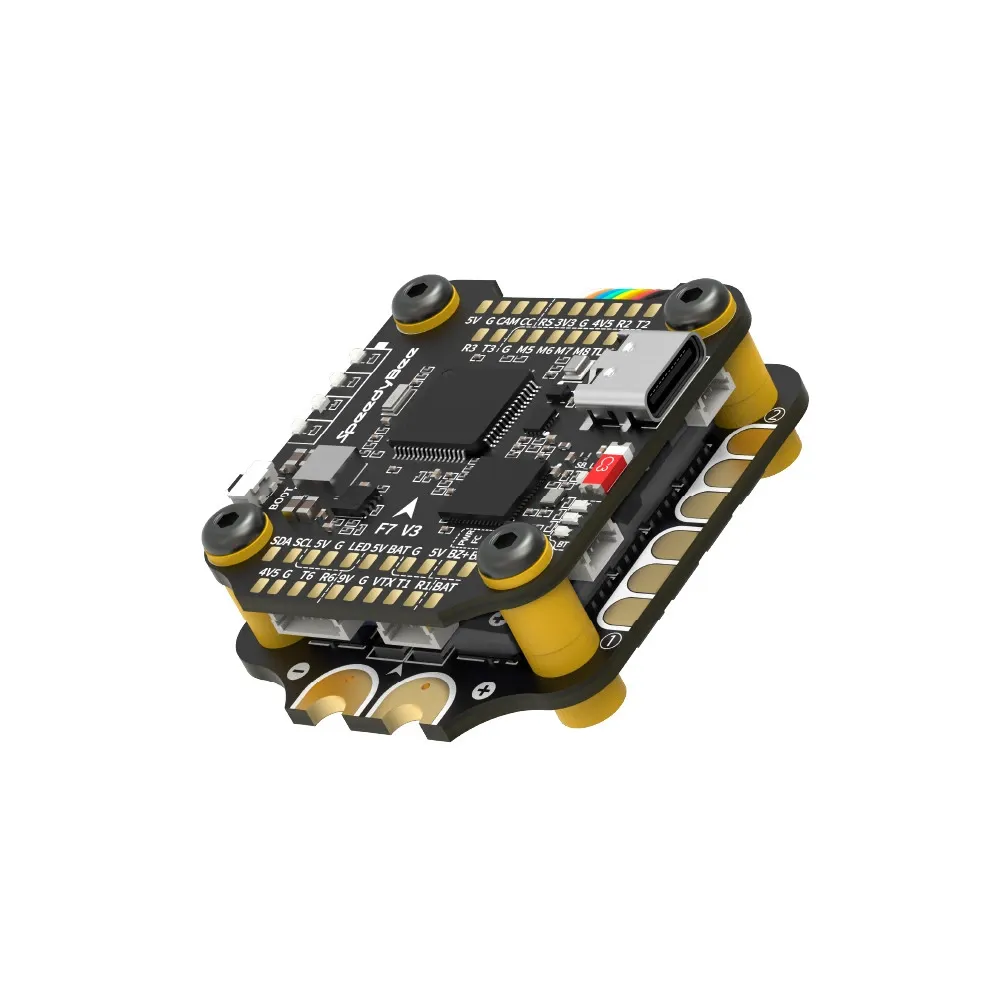

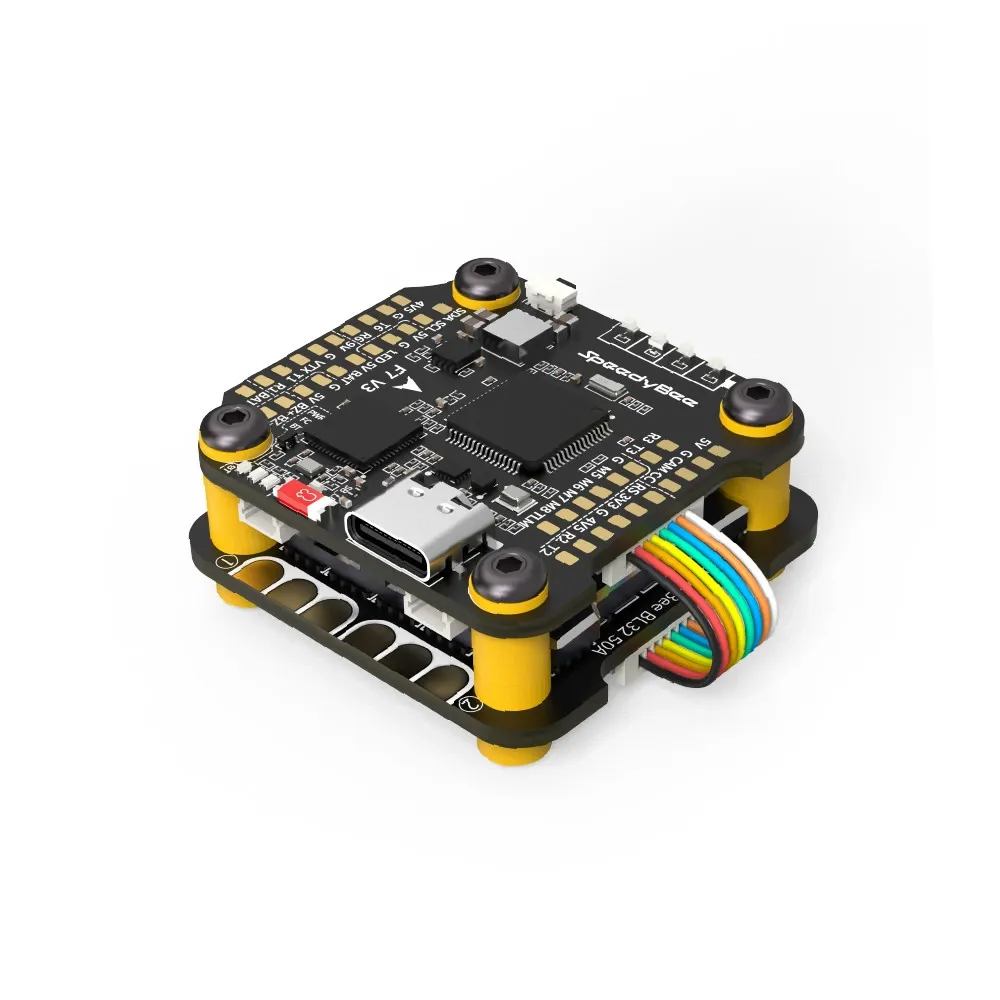

The SpeedyBee F7 V3 BL32 50A 30×30 Stack is a cutting-edge flight controller and ESC combo designed for high-performance FPV racing and drone applications. This stack features a powerful F7 flight controller that provides advanced processing capabilities, ensuring smooth and precise flight dynamics. Paired with a 50A BL32 ESC, it delivers reliable power to your motors, capable of handling demanding workloads during intense flying sessions.
SpeedyBee F7 V3PREMIUM SPEC.
AFFORDABLE PRICE
Flash your firmware 33% faster
wirelessly + full FC configurationBuilt with a better Bluetooth/WiFi 2-in-1 chip for 33% faster wireless data
transfer. Update FC firmware with your smartphone in just 1 minute!
Connect this FC via Bluetooth and fully configure any setting for
Betaflight/INAV as you want.
Get your Blackbox data in
1 minute anytime, anywhereWith an optimized algorithm and upgraded Bluetooth/WiFi chip, you can
dive into your Blackbox data every time you land your quad. Just take
your smartphone out, connect, and download your flight in 20 seconds.
The path to progress has never been easier.
Hate soldering?

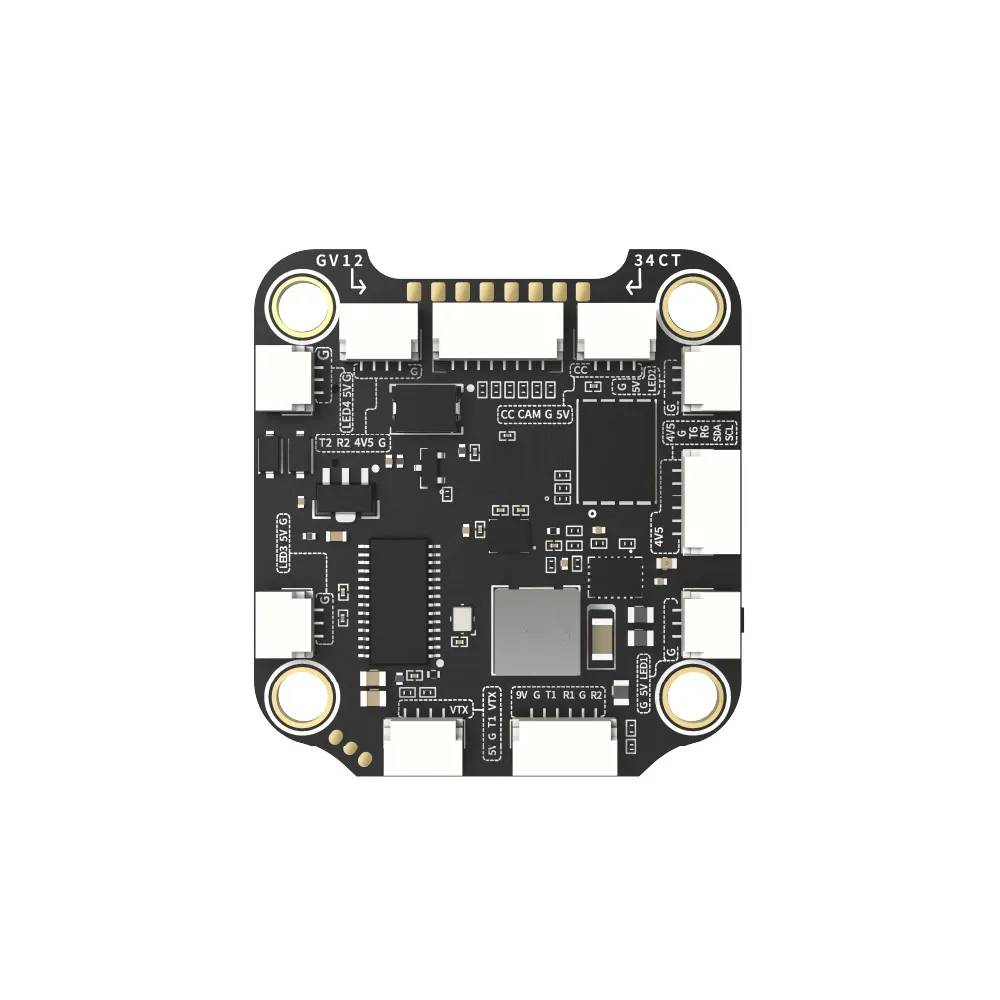

Just plug them all in!It’s 2022, so having a plug vs soldering option is a must! Plug in your
digital video transmitter, receiver, camera, VTX, and GPS to complete
your build in no time. Also comes with 4x LED plugs so you can light
up your quad with no headache. Prefer soldering? Just flip the board
and start working on it.
Change your motor
direction wirelesslyFinishing your latest build? Just replaced your
motor after a crash? Take your smartphone out,
and configure your motor direction wirelessly
with the latest SpeedyBee app. Works for all
BLHeli32 / BLHeli_S / BlueJay ESCs.
8 motors output, perfect for
your X8 cinelifters!There’s no other X8 flight controller better than this. Forget about
crawling through your massive build just to plug in that USB cable.
Just take out your phone to configure that X8 monster wirelessly
before that challenging commercial shot. Professional FPV pilots
got no time to waste.
Light up your quad in no time
with 4x LED plugsNeed more visibility at night? Just plug in your LEDs and blaze the
darkest trail you can find, no soldering required. With just one tap
on the Boot button, you can cycle through all different LED presets*
and pick the one you love!*Or long press the boot button to switch to Betaflight LED mode
Forgot your LiPo checker?
Just look at the FC!Built with a 4-level LED battery indicator, now you can fly anywhere
worry-free - even without your lipo checker!
32MB (typical FC memory) X 16
=500MB onboard Blackbox
flash memoryStore up to 100 complete flights with our huge 500MB onboard
Blackbox flash memory. Or keep your encrypted Area 51 files in
it for your top-secret Man in Black mission. Whatever suits your
tactical purpose. *The Flash memory chip manufacture calculates the capacity by a
rate of 1000(instead of 1024), so the display capacity on your
computer will be slightly less than 500MB.
And packed with other useful
features● 9V 4A + 5V 2A individual BECs
● Power your GPS with a USB cable - no battery needed
● 22mm cutouts for FPV camera in your tight build
● Built-in barometer for accurate height calculation

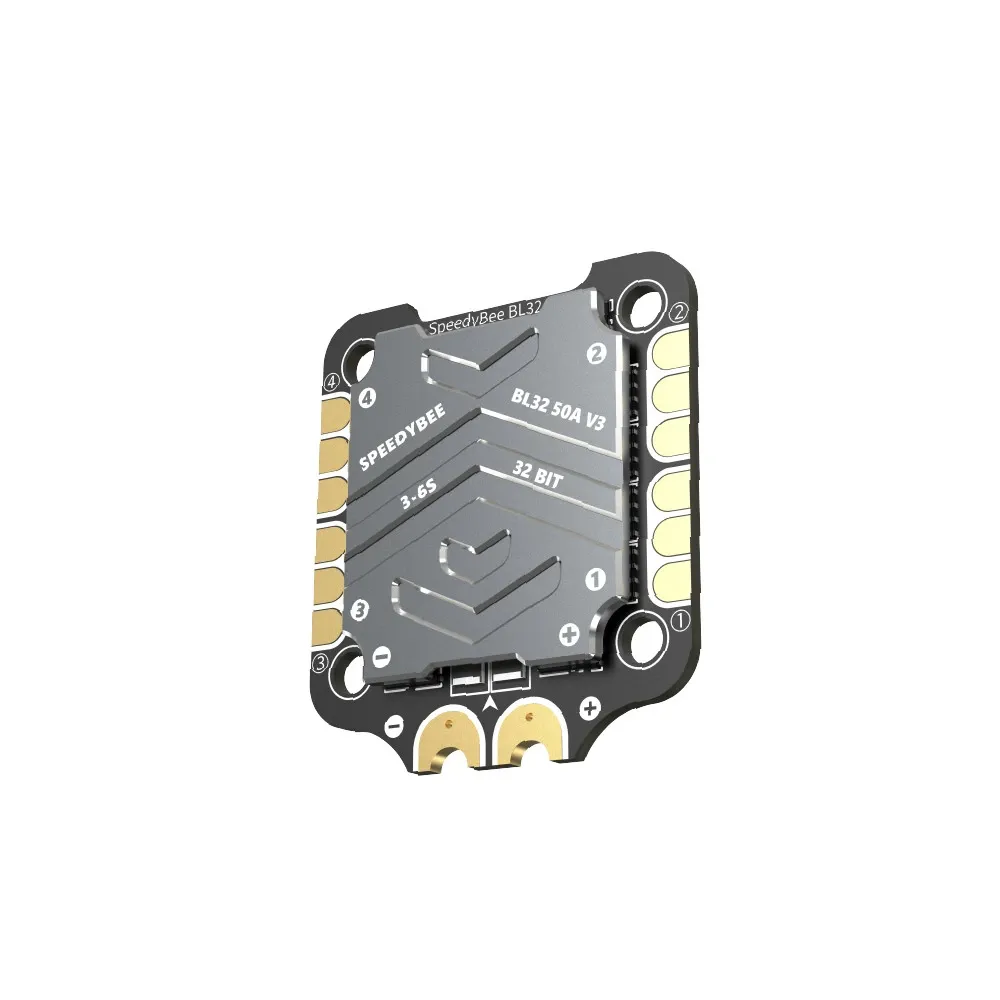

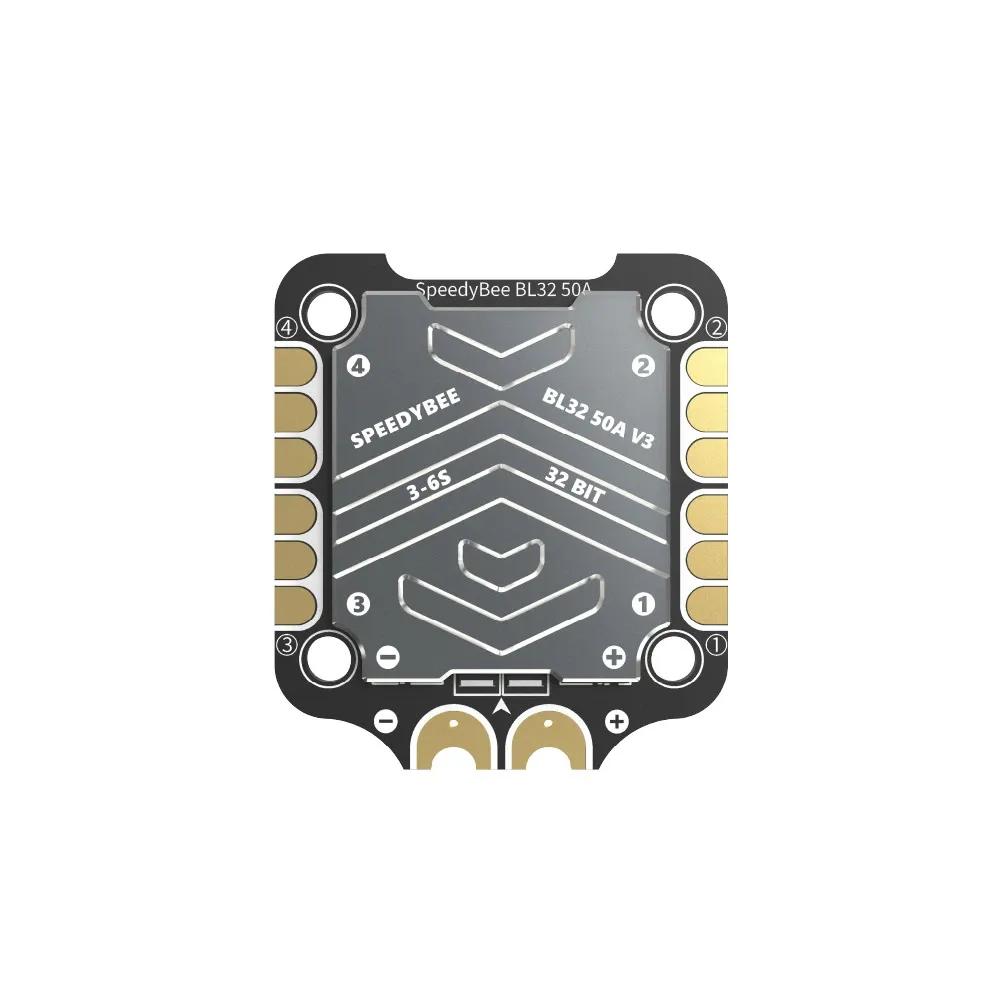

SpeedyBee BL32 50A 4-in-1 ESC50A ESC MADE FOR CHAMPIONS
When we say 50A, we mean it.Real 50A output, ready for your baddest, meanest 6S motors.
Blast through any obstacle during freestyle with no worry, or
keep that highest throttle position during races.
1000uF Low ESR capacitor + TVS
protective diode = Extra protectionThe ESC is built with TVS protective diode to absorb the voltage spike
when you plug in the battery, or during crashes that block your props.
We also provide a humongous 1000uF low ESR capacitor, ensuring
clean data from the gyro to the FC.
Tested by 2 top racing pilots with both over 1500 packs, or you can
put it to the test yourself.
Wanna crank it up to 128KHz PWM?
Why not?With F4 MCU, you can set the PWM frequency up to 128KHz. Find
the best PWM frequency* to get for your build without any limitation. * The ideal PWM frequency for each build varies depending on the
frame, motors, props, and other factors. Higher PWM frequency
doesn't necessarily means smoother flight. If the default 48KHz is
not working for your build, you can increase the value gradually
until you find the sweet spot. Check your motor temperature to
avoid overheating.
CNC heat sink shield =
no overheating in any conditionBuilt with high-quality CNC heat sink to significantly reduce the
heat from your MOSFETs ensuring stable current flow at a high
throttle position. Great benefit in a stylish blue finish.
Specifications
