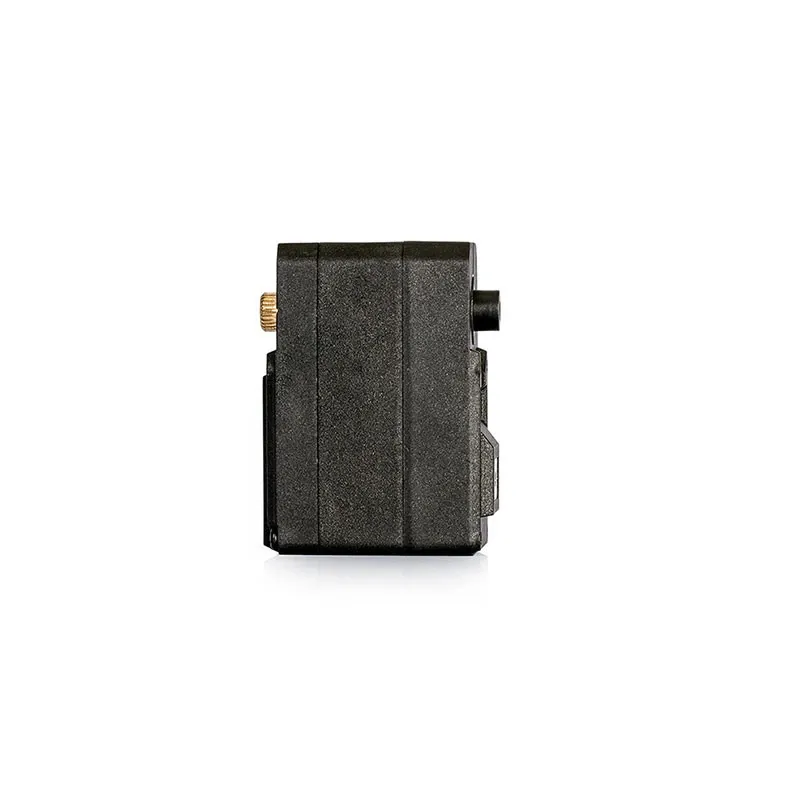

ST3215 - 7.4V 19Kg Dual Axis TTL String Servo Motor

(0 review)

Brand:Feetech

The STS3215 7.4V 19Kg Dual Axis Servo Motor delivers high torque and precision with durable construction. Featuring 360° rotation, copper gears, and advanced feedback, it's ideal for robotics and automation projects. Perfect for demanding tasks.

Add to cart Buy now
Add to wishlist
Price
₹ 2,050.00 ₹ 2,050.00 (Tax included)

Click for  Terms and Conditions

MORE INFORMATION

Powerful Precision with the STS3215 Dual Axis String Servo Motor: Enhance Your Robotics with Cutting-Edge Performance. The STS3215 7.4V 19Kg Dual Axis TTL String Servo Motor is engineered for high-performance robotics and automation projects. With its robust aluminium alloy case, copper gears, and coreless motor, this servo motor delivers exceptional durability and efficiency. It delivers an impressive peak stall torque of 19.5kg · cm at 6V, making it ideal for applications requiring precision and power. The motor's 360° rotation capability, combined with advanced feedback options including load, position, speed, input voltage, and current, ensures unparalleled control and accuracy. Key Features:

  • High Torque Performance: Peak stall torque of 19.5kg.cm @ 6V for demanding tasks.
  • Durable Construction: Aluminium alloy case and copper gears for long-lasting durability.
  • Advanced Control: 360° rotation with detailed feedback on load, position, speed, and more.
  • Wide Operating Range: Operates efficiently across a 6-7.4V range, providing versatility.
  • Precision Engineering: Coreless motor with ball bearings for smooth, reliable operation.
ModelST-3215-C001
Product Name

7.4V 19KG. Dual axis TTL string servo

Storage Temperature Range-30°C~80°C
Operating Temperature Range-20°C~70°C
DimensionsA：45.2mm B：24.7mm C：35mm
Weight55± 1g
Gear typeCopper
Limit angleNO limit
BearingBall Bearing
Horn gear spline25T
Horn typePlastic,POM
Casealuminium alloy
Connector wire150mm ± 5mm
MotorCoreless motor
Operating Voltage Range 6-7.4V
No load speed 0.238sec/60°@6V
Runnig current150 mA@6V
Peak stall torque19.5kg.cm@6V
Rated torque6.5kg.cm@6V
Stall current2000mA@6V
Command signalDigitalPacket
Protocol TypeHalf Duplex Asynchronous Serial Communication
ID Range0-253
Communication speed38400bps ~ 1 Mbps
Running degree360° (when 0~4096)
FeedbackLoad,Position,Speed,InputVoltage ,Current
