DJI Goggles 2

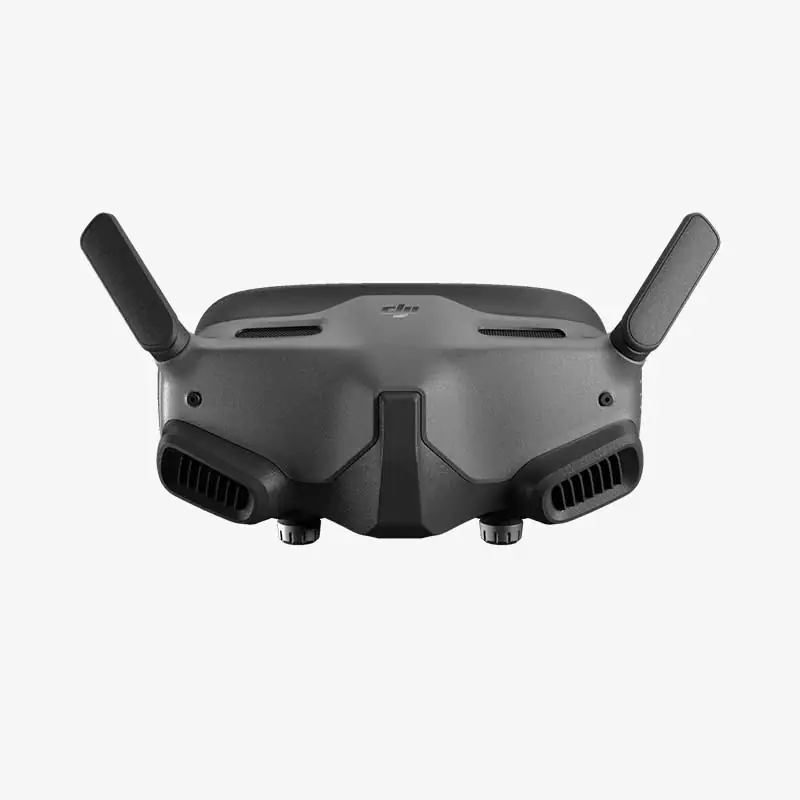

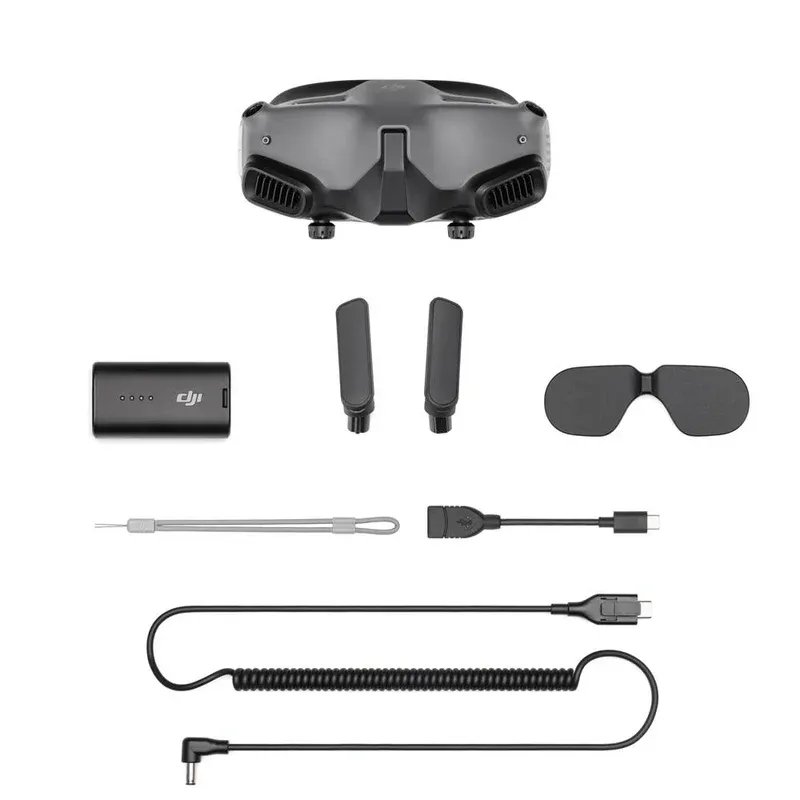

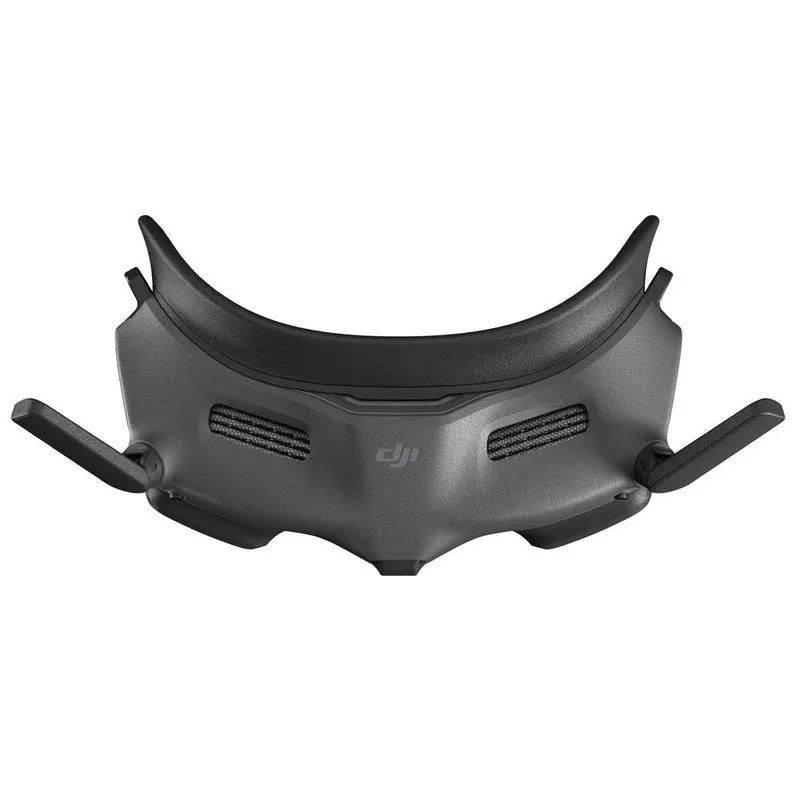

The DJI Goggles 2 provide next-level comfort and convenience. Now smaller, lighter, and equipped with Micro-OLED screens, so you experience outstanding clarity as you navigate the sky! DJI Goggles 2 are compact and ultra-portable. The foldable antenna and lightweight design make them easy to store, comfortable to wear, and suitable for long-term use. With two-hour battery life and super-fast charging speeds, you can always be ready for an immersive flight.

GET IN THE PILOT’S SEAT

Enjoy next-level comfort and convenience with DJI Goggles 2. Now smaller, lighter, and equipped with Micro-OLED screens, so you experience outstanding clarity as you navigate the sky! Feel every flight with DJI Avata and Goggles 2. The two HD Micro-OLED screens offer stunning clarity and a refresh rate of up to 100 Hz. The goggles present a smooth full-screen live feed in front of your eyes, creating an immersive world of limitless potential.

DIOPTER ADJUSTMENT

DJI Goggles 2 offer diopter adjustment from +2.0 D to -8.0 D for optimized viewing and comfort. Lock the adjustment knob to fix the diopter in place and prevent accidental touches during use or storage.

DJI GOGGLES 2

• Supported Video and Audio Playback Formats: MP4 and MOV (video coding formats: H.264 and H.265; audio format: ACC, PCM)

• Wi-Fi Transmission Power (EIRP)

  • 2.4 GHz: < 20 dBm (FCC/CE/SRRC/KC)
  • 5.1 GHz [8]: < 20 dBm (FCC/CE/KC)
  • 5.8 GHz [4]: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)

• Transmission Power (EIRP):

  • 2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
  • 5.8 GHz: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Bluetooth Communication Frequency: 2.400-2.4835 GHz
• Wi-Fi Wireless Streaming: Supports DLNA Protocol
• Bluetooth Transmission Power (EIRP): < 8 dBm
• Supported SD Cards: microSD (up to 256 GB)
• Max Video Transmission Bitrate: 50 Mbps

• Wi-Fi Communication Frequency:

  • 2.400-2.4835 GHz
  • 5.150-5.250 GHz (indoor use only)
  • 5.725-5.850 GHz
• Wi-Fi Protocol: Wi-Fi 802.11b/a/g/n/a
• Power Input: DJI Goggles 2 Battery
• Bluetooth Protocol: Bluetooth 5.2
• Video Recording Format: MOV

• Communication Frequency

  • 2.400-2.4835 GHz
  • 5.725-5.850 GHz
• FOV (single screen): 51

DJI GOGGLES 2 BATTERY

• Charging Temperature Range: 70° to 45° C (32° to 113° F)
• Max Charging Power: 712.6 W (5 V/2 A, 9 V/1.4 A)
• Dimensions (L×W×H): 73.04×40.96×26 mm
• Operating Time: Approx. 2 hours
• Chemical System LiNiMnCoO2
• Weight: Approx. 122 g
• Voltage: 7-9 V (1.5 A)
• Capacity: 1800 mAh
• Energy: 18 Wh
• Type: Li-ion
