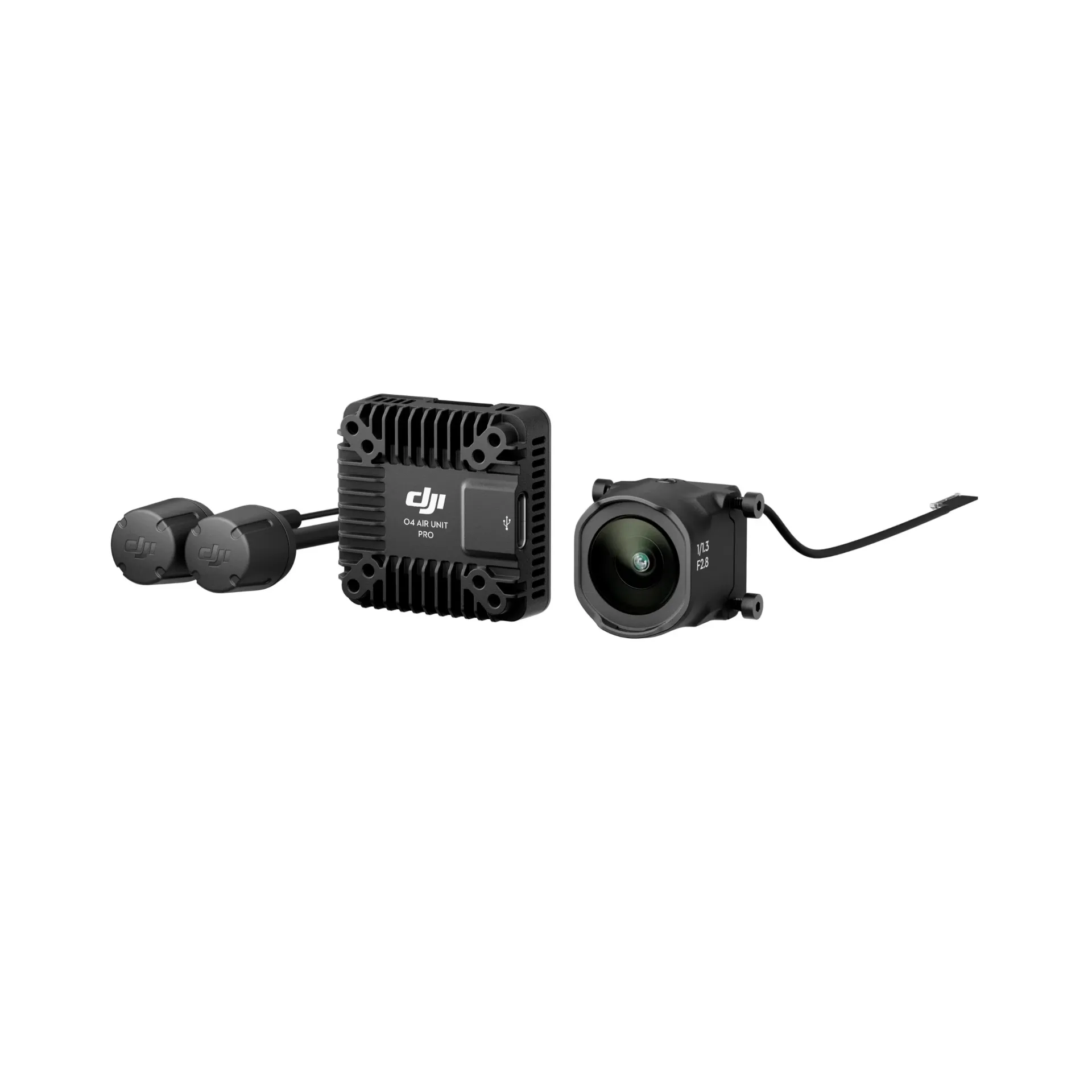

The DJI O4 Air Unit Pro is the flagship video transmission and camera module in DJI's O4 Air Unit lineup, built for FPV pilots who want broadcast-quality footage without bolting on a separate action camera. By combining a larger 1/1.3" image sensor with DJI's latest O4 transmission protocol, the O4 Pro delivers a live feed that's sharper, smoother, and more reliable — while simultaneously recording footage good enough to publish straight off the aircraft.
One Camera Does It All
At the heart of the O4 Pro is a 1/1.3" CMOS sensor paired with a 155° field-of-view, f/2.8-equivalent 12mm lens. It records 4K video at up to 120 fps (with 4K 4:3 at 60 fps also supported), giving you the flexibility to shoot ultra-smooth slow motion or wide-angle cinematic footage without ever reaching for a GoPro. A 10-bit D-Log M color profile preserves dynamic range for color grading in post. In contrast, DJI's in-goggle color enhancement lets you fly with a punchy, contrast-rich preview — without affecting the flat, gradeable footage actually being recorded.
See Everything, React Instantly
The O4 transmission system pushes a 1080p/100fps live video feed using efficient H.265 encoding, so what you see in your goggles is clear, fluid, and virtually lag-free. Dual antennas and automatic frequency selection extend reliable transmission range up to 15 km in open, interference-free conditions, while continuously hunting for the cleanest channel to keep your link locked in.
For pilots who race, the O4 Pro's dedicated Racing Mode drops latency to as little as 15ms and supports up to 8 aircraft transmitting simultaneously on the same frequency band — built for competitive multi-pilot environments. (Racing Mode requires DJI Goggles 3 or Goggles N3.)
Built-In Storage, No Excuses
Forget your SD card? The O4 Pro includes 4GB of onboard storage — enough for roughly 4 minutes of 4K/60fps footage as a safety net — plus support for microSD cards up to 512GB for full-length recording sessions at a 130Mbps bitrate.
Fully Customizable Flight Data
With support for Canvas Mode and Betaflight OSD, pilots can fully customize what telemetry and overlay data appear in their goggles, keeping critical flight information visible at a glance without cluttering the view.
Built for Performance Frames

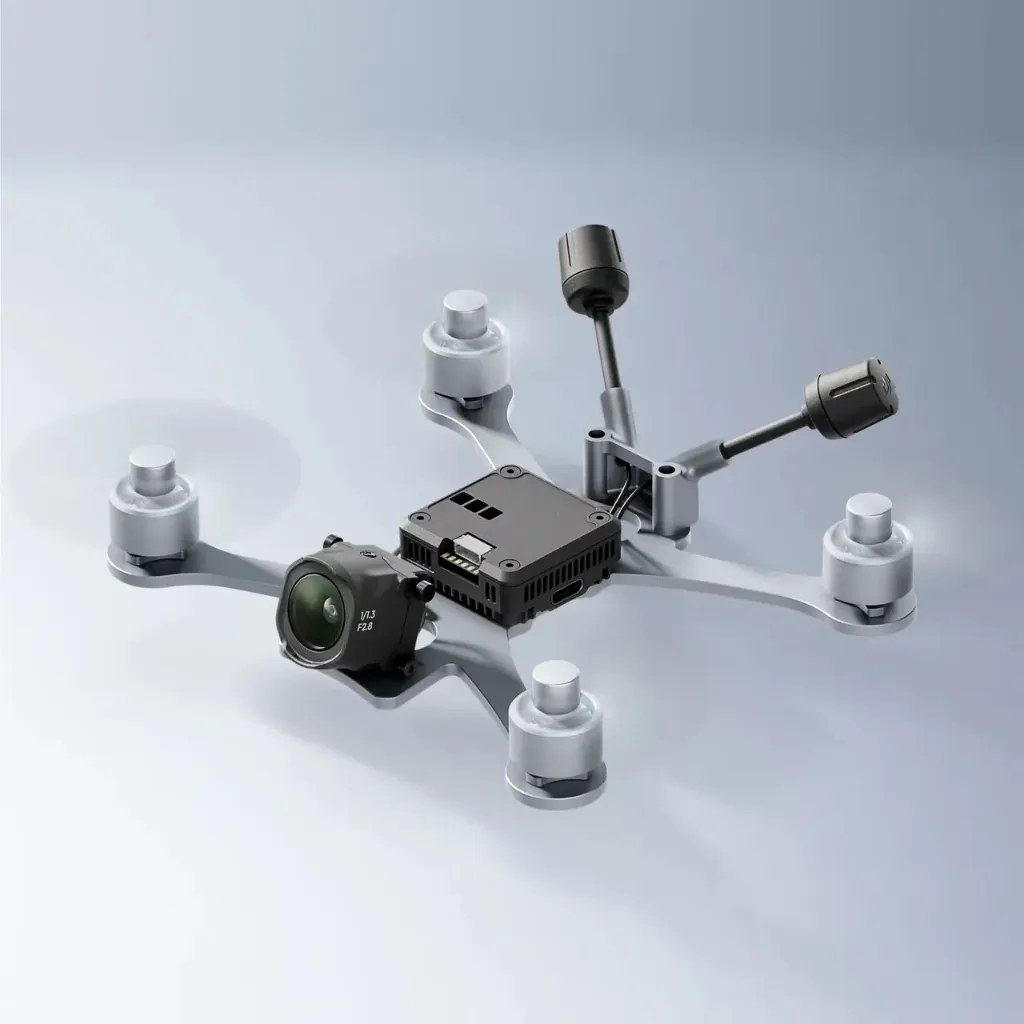

Designed to fit drone frames of 3 inches and above, the O4 Air Unit Pro integrates cleanly into freestyle and racing builds alike. It pairs with the DJI Avata 2 ND Filter Set for shutter speed and exposure control, helping you dial in natural motion blur in bright conditions.
Broad Goggles Compatibility
The O4 Air Unit Pro works with DJI Goggles 2, DJI Goggles Integra, DJI Goggles 3, and DJI Goggles N3. Note that full feature support (including Racing Mode) is only available on DJI Goggles 3 and Goggles N3. It is not compatible with the original DJI FPV Goggles V1/V2. The system also pairs with the DJI FPV Remote Controller 2 or 3 on flight controllers running SBUS-compatible firmware.
4. Key Features (Bullet List)
- 4K/120fps Recording — 1/1.3" CMOS sensor with 155° FOV, f/2.8-equivalent 12mm lens
- 10-bit D-Log M Color — Flat color profile for full grading flexibility in post
- In-Goggle Color Enhancement — Punchy live preview without affecting recorded footage
- O4 Low-Latency Transmission — 1080p/100fps live feed via H.265 encoding
- Up to 15 km transmission range* — Dual antennas with automatic frequency selection
- Racing Mode — As low as 15ms latency, supports up to 8 simultaneous aircraft
- 4GB Onboard Storage — Backup recording even without an SD card
- microSD Support up to 512GB — 130Mbps recording bitrate
- Canvas Mode + Betaflight OSD — Fully customizable in-goggle telemetry overlay
- Compact, Lightweight Build — Fits drone frames 3" and above
- RockSteady-Ready — Stabilization off by default, Gyroflow-compatible footage
Range and latency figures are based on controlled outdoor testing without interference; real-world results vary by environment and local RF regulations.
Upgraded Imaging: Cinematic Masterpieces at Your Fingertips
The DJI O4 Air Unit features a 1/2-inch image sensor, capable of capturing 4K/60fps video. The DJI O4 Air Unit Pro goes a step further with a 1/1.3-inch image sensor, supporting 4K/120fps video recording. [1] No need for an external action camera to achieve ultra-wide-angle, high-definition footage. Creating stunning visuals has never been so effortless.
https://www.aagosh.in/shop/dji-o4-air-unit-pro-897 The DJI O4 Air Unit Pro Camera Module can be used with the DJI Avata 2 ND Filter Set (ND8/16/32). [7] Even in bright lighting conditions, it ensures balanced exposure and true-to-life colors. This allows you to flexibly control light intake and shutter speed, easily achieving natural motion blur and making your footage more dynamic and impactful.
155° Ultra-Wide FOV4K/120fps Video10-bit D-Log M Color Mode, Multiple Stabilization Modes. Retains more details in highlights and shadows, giving you greater flexibility in post-production editing.Even in Intense Light, Create With Confidence
