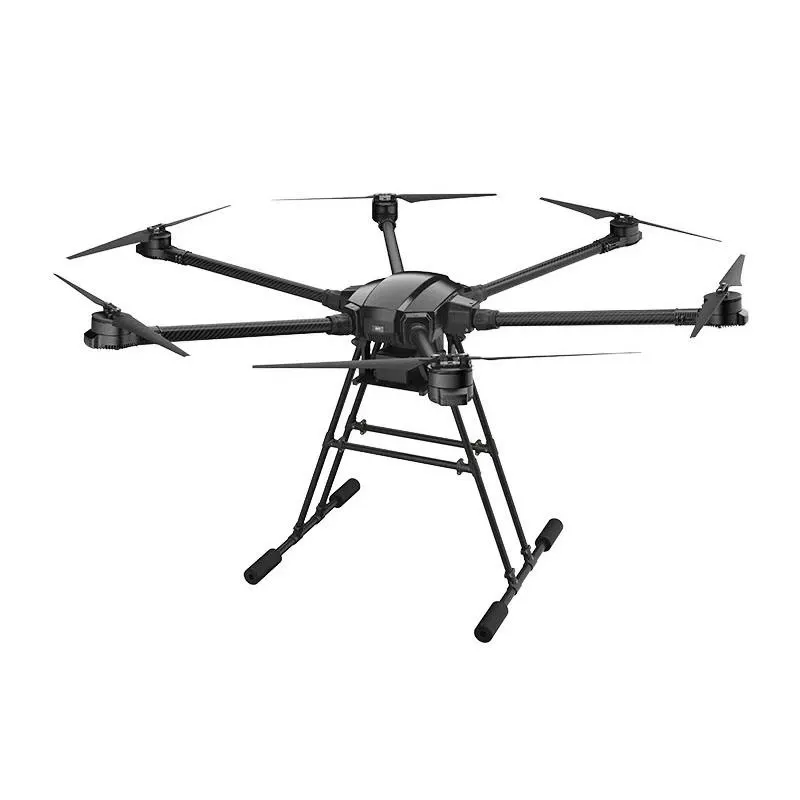

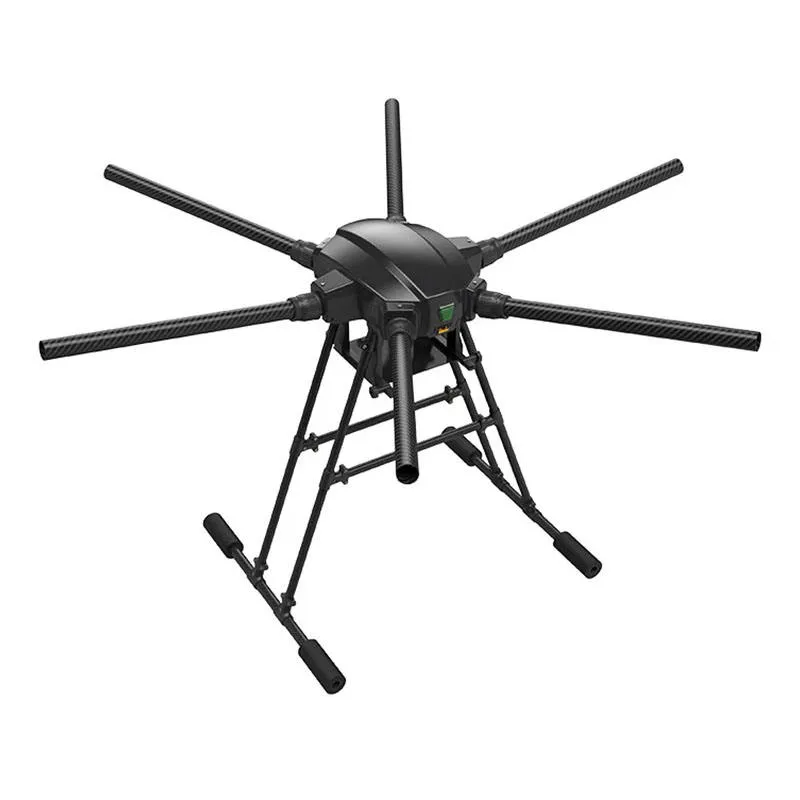

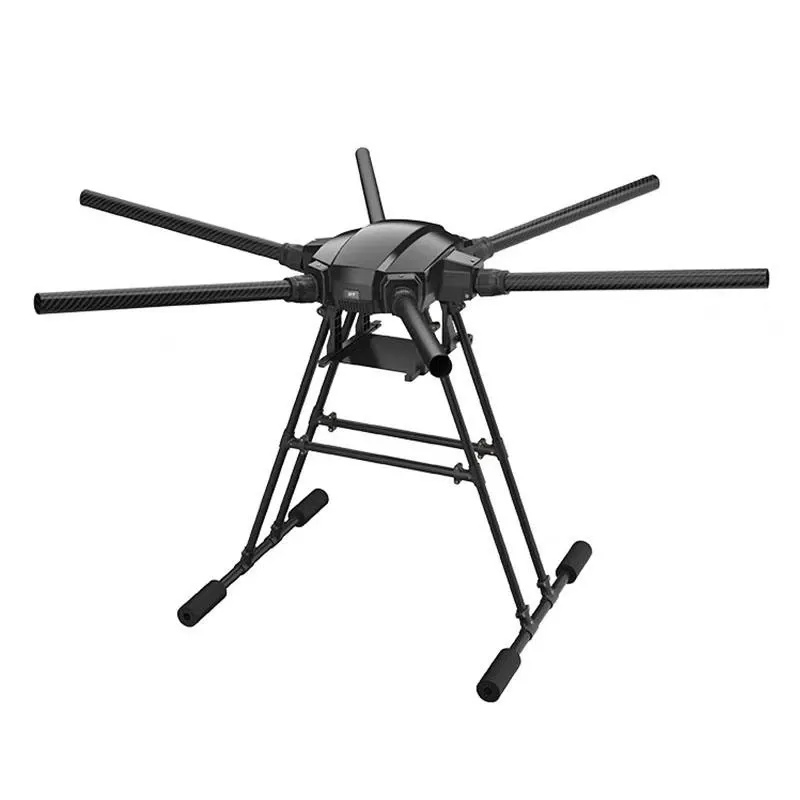

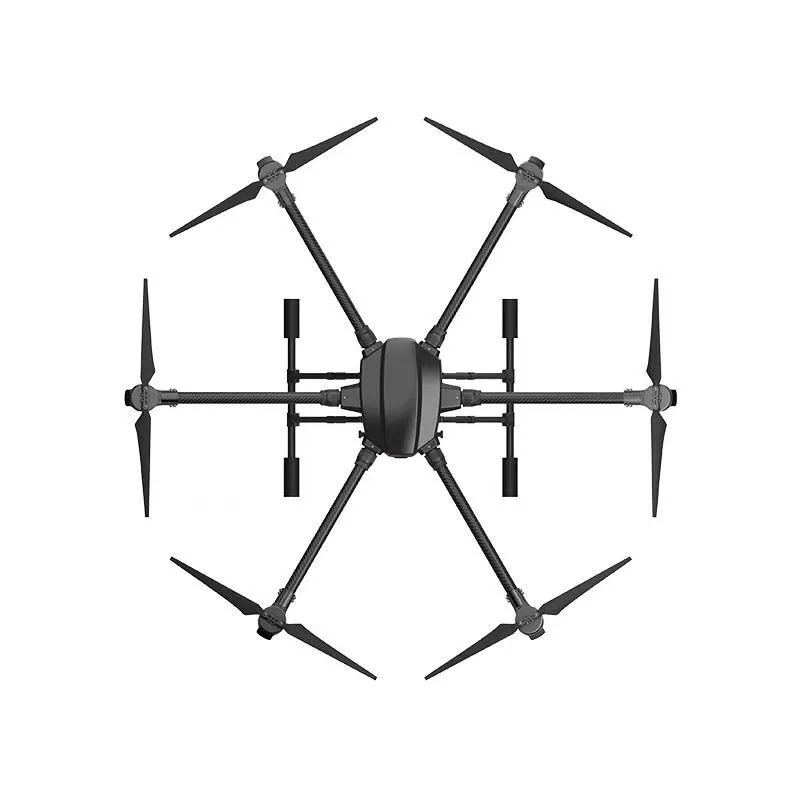

EFT X6120 Multifunction Surveillance Drone Frame

X6 SERIES INDUSTRIAL DRONE PLATFOMRLight & Versatile

•

  Waterproof Design

•

  Wheelbase

•

  Max-load

•

  Modular Design

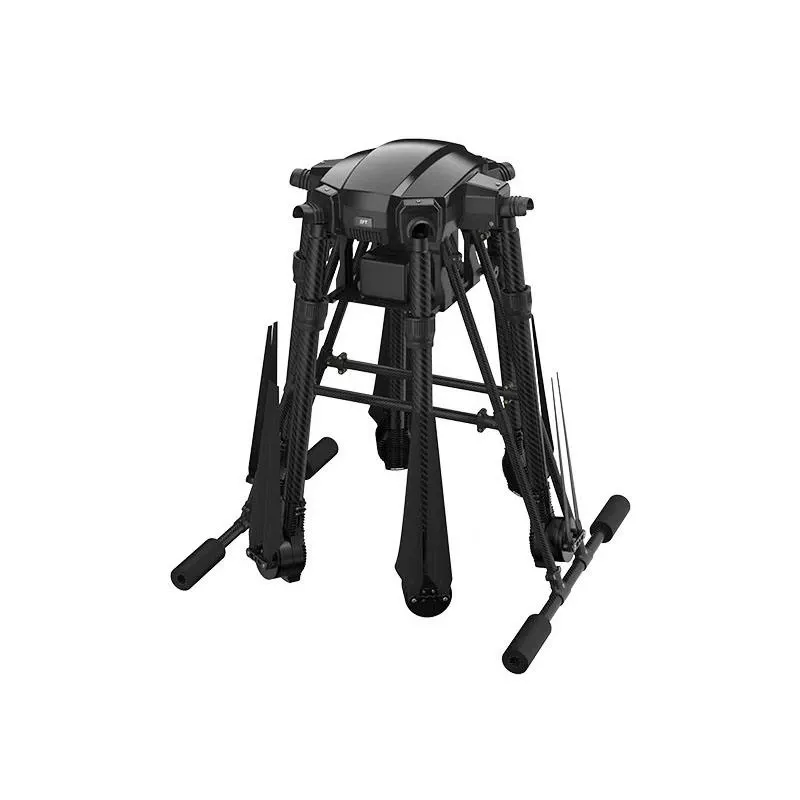

Modular Integrated Frame Simplified Structure, Easy Assembly. Featuring a modular structure and integrated injection molding process, the design minimizes components for easier assembly. With ample internal space, it allows flexible installation of various components, making it ideal for light-load applications.Detachable Arm Folding Joint Cost-Effective Maintenance. The modular, detachable arm design features built-in breakaway buffers at key joints, helping to reduce crash damage, enhance durability, and lower repair costs. Umbrella-fold Design, Compact and Lightweight for Easy Transport. The umbrella-shaped fold makes the drone compact and space-saving, easy to carry through forests or narrow paths, enhancing deployment efficiency for rescue, surveying, and other missions.Expandable Mounting Platform Adaptable for Various Missions. With universal expansion ports, the platform supports devices like gimbal cameras, loudspeakers, droppers, and pods. Built to handle inspection, rescue, police training, and beyond.Product Details

• Quick-release Battery Rail
• Integrated PDB
• Reserved Wiring Hole
• Reserved Expansion Ports

Multi-purpose Expansion

• Water Conservancy Monitoring
• Education and Training
• Forest Patrol

ParametersX6100

Wheelbase: 1000mm

Frame Weight: 2.82kg

Empty Weight: 4.85kg

Full Load Weight: 12kg

Payload: 0-3kg

Recommended Motor: E5

Recommended Propeller: 18inch

Recommended Battery: 16-22Ah（6S）

X6120

Wheelbase: 1290mm

Frame Weight: 3.04kg

Empty Weight: 7.5kg

Full Load Weight: 18kg

Payload: 0-6kg

Recommended Motor: X6 Plus

Recommended Propeller: 24inch

Recommended Battery: 16-22Ah（12S）
