The Flylens 75 frame is a 1.6-inch whoop-type frame designed for indoor and narrow space flight. It is compatible with various mainstream digital and analog image transmission systems. The frame is equipped with an injection-molded protective ring and a carbon black treatment process.
The Flylens series opens up the field of micro-crossing machine film and television creation, providing the latest and most reliable solutions for exploring and capturing new perspectives.

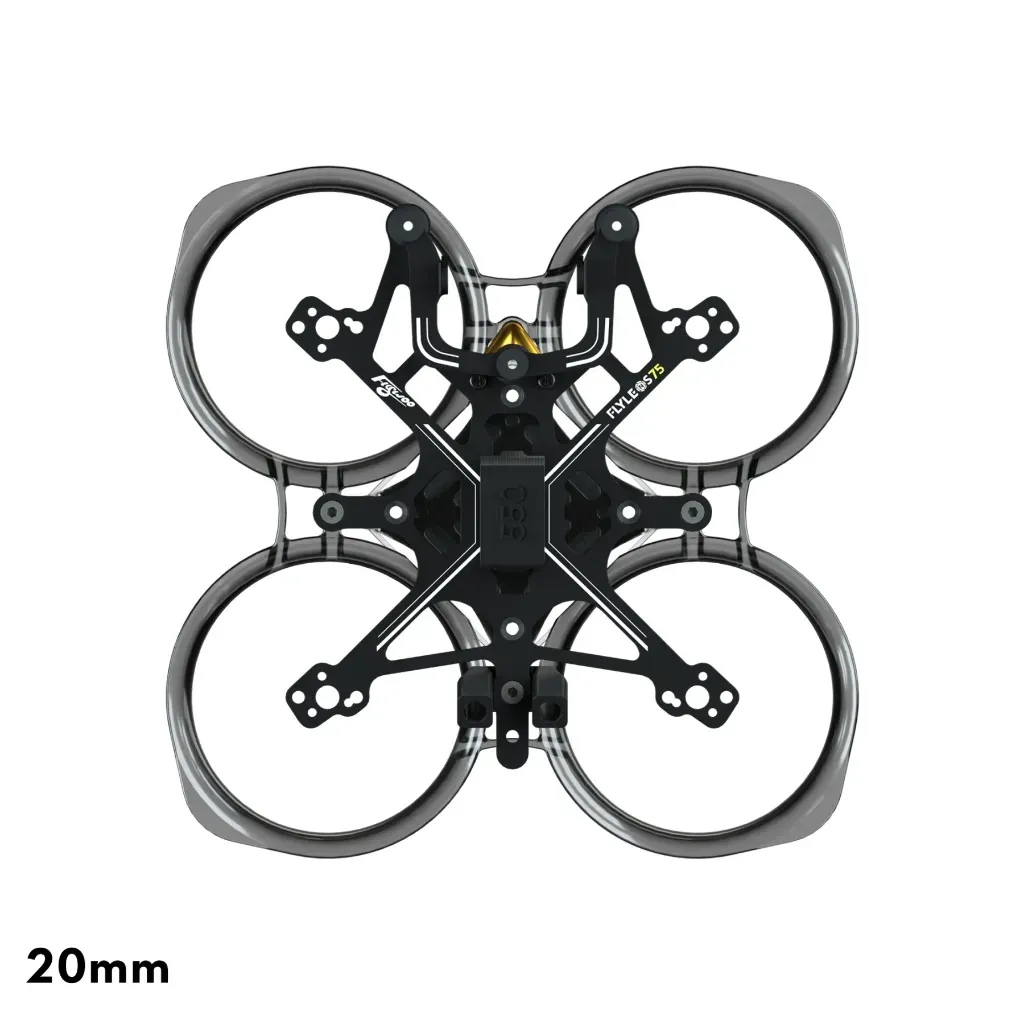

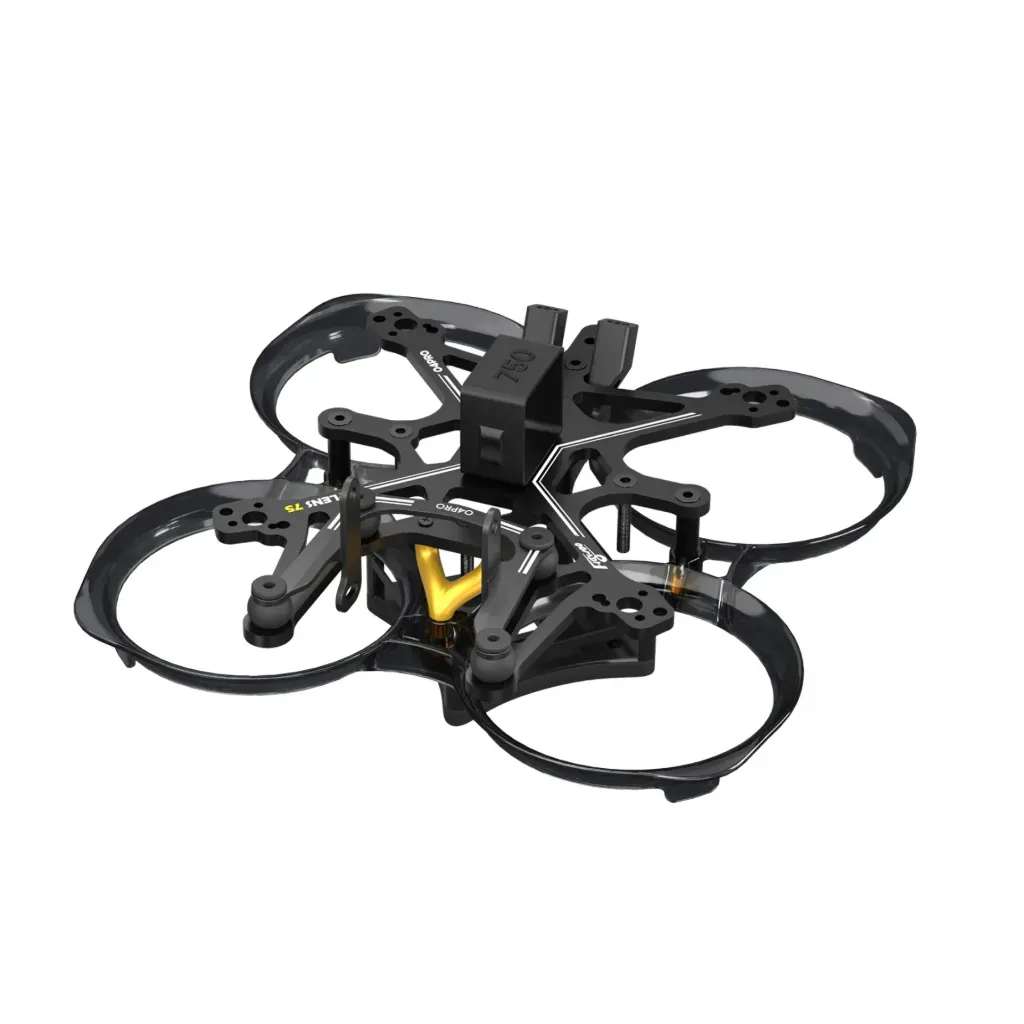

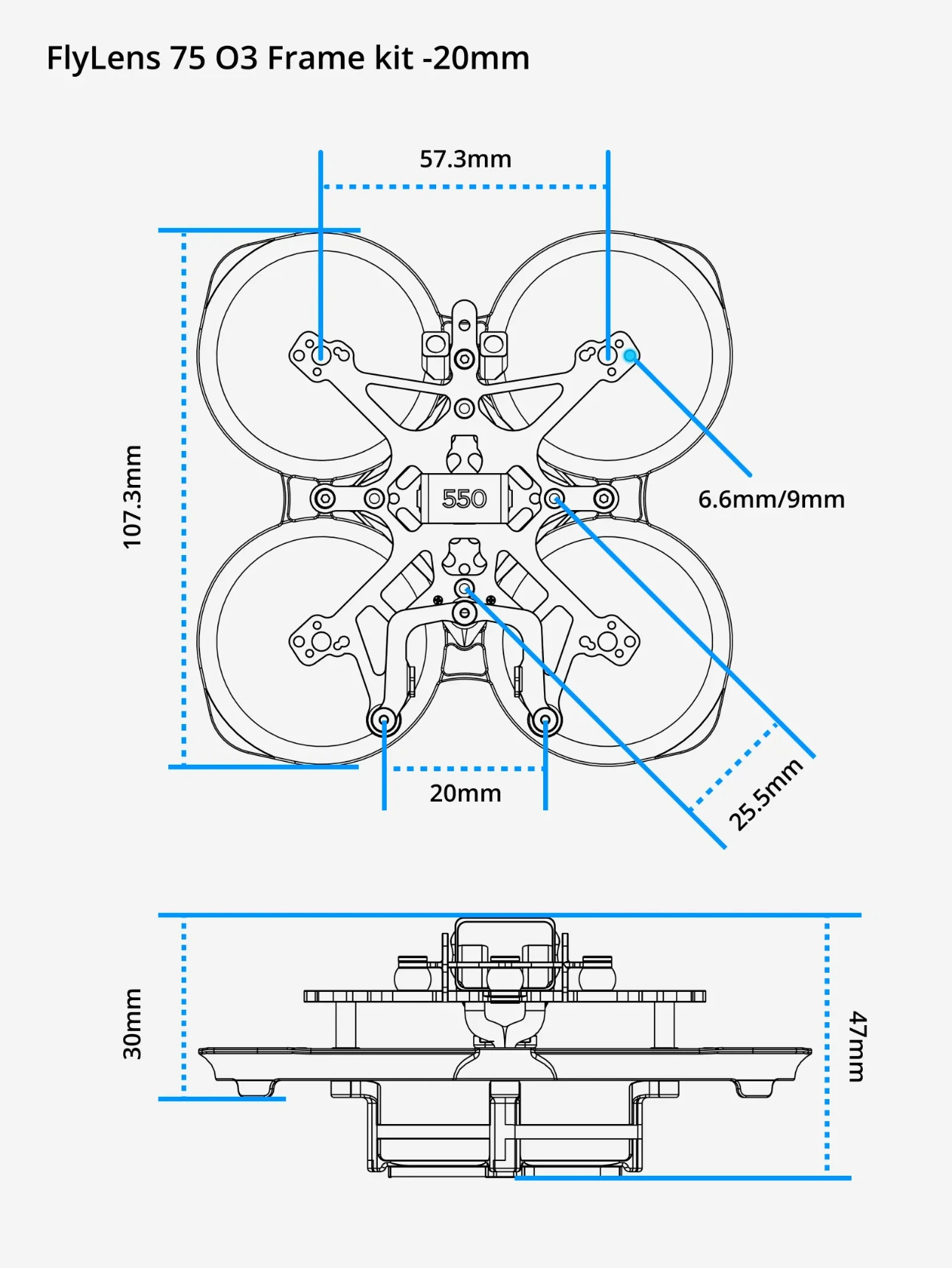

O3 Frame kit (20mm Cam Size): Suitable for all 20mm-sized cameras, such as Nebula Pro, Wasp, Walksnail Micro Cam, and HDZero Micro Cam.
O3 Lite / O4 Frame kit (18mm Cam Size): Comes with a default 18mm CNC camera bracket. But you can also purchase an additional 14mm CNC camera bracket for installing, such as Nebula Pro Nano, Wasp Nano, Walksnail 1S Lite, and HDZero 1S Whoop, O3 lite air unit, O4 air unit

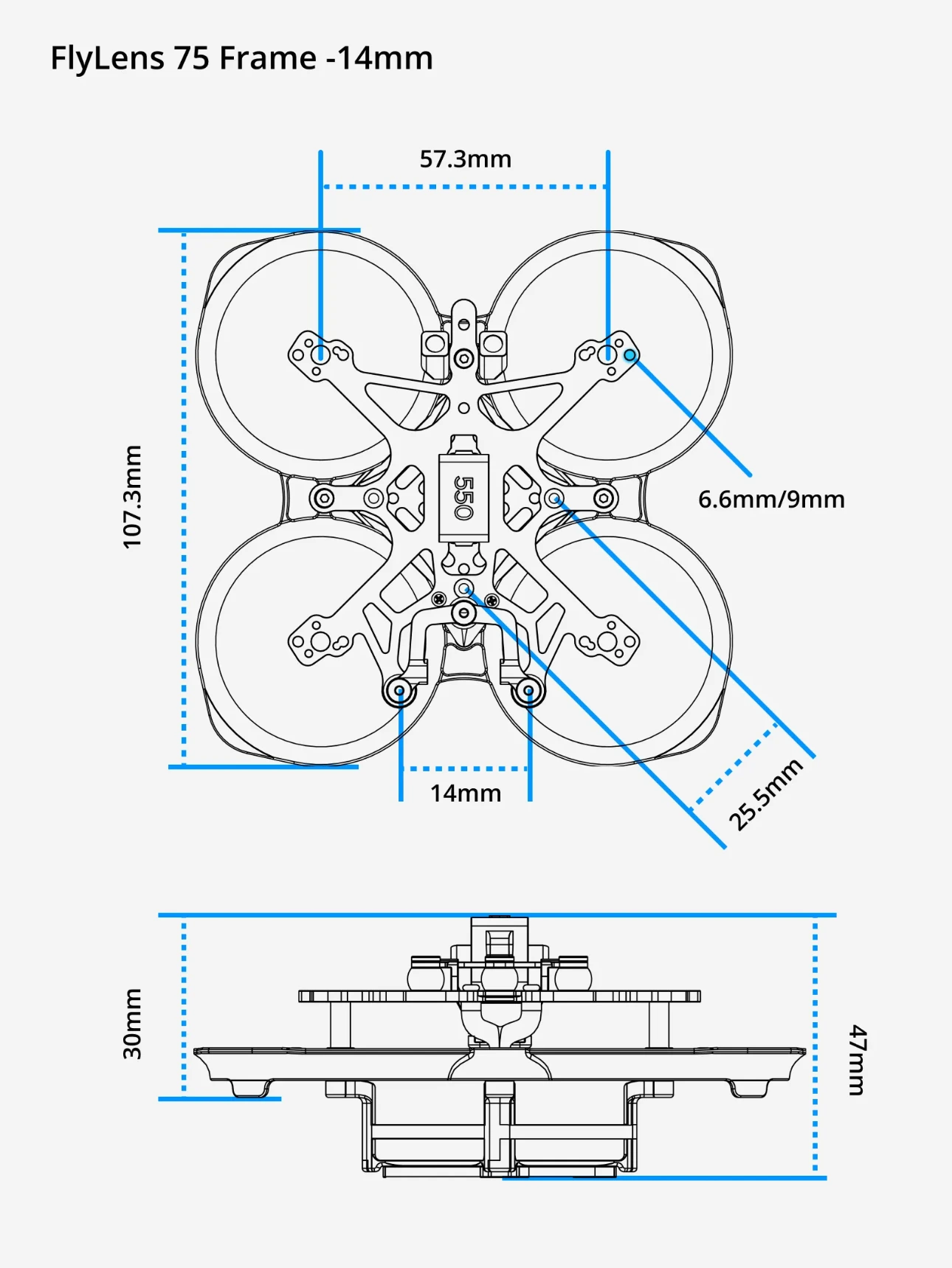

Flylens 75 Frame kit (14mm Cam Size): Suitable for all 14mm-sized cameras, such as Nebula Pro Nano, Wasp Nano, Walksnail 1S Lite, and HDZero 1S Whoop, Flywoo Nano Cam V3
Brand
FLYWOO
Model
Flylens 75
Main Board Thickness
2mm
CNC Gimbal Thickness
1mm
Protective Ring Material
PC+
Flight Control Hole Position
25.5x25.5mm
Image Transmission Hole Position
20/25.5mm Motor Hole
Position
6.6mm/ 9mm
Propeller Size
1.6 inch
Camera Hole Position
14mm\18mm\20mm
