Foxeer M10Q 250 GPS 5883 Compass

(0 review)

Brand: Foxeer

  1. Chip: M10(10th Generation Chip)
  2. Frequency: GPS L1，GLONASS L1，BDS B1，GALILEO， ESBAS L1，QZSS L1
  3. Input Voltage: 5V
  4. Antenna: Ceramic Antenna
  5. Channel: 72
Add to cart Buy now
Add to wishlist
Price
₹ 2,800.00 ₹ 2,800.00 (Tax included)

Click for  Terms and Conditions

MORE INFORMATION

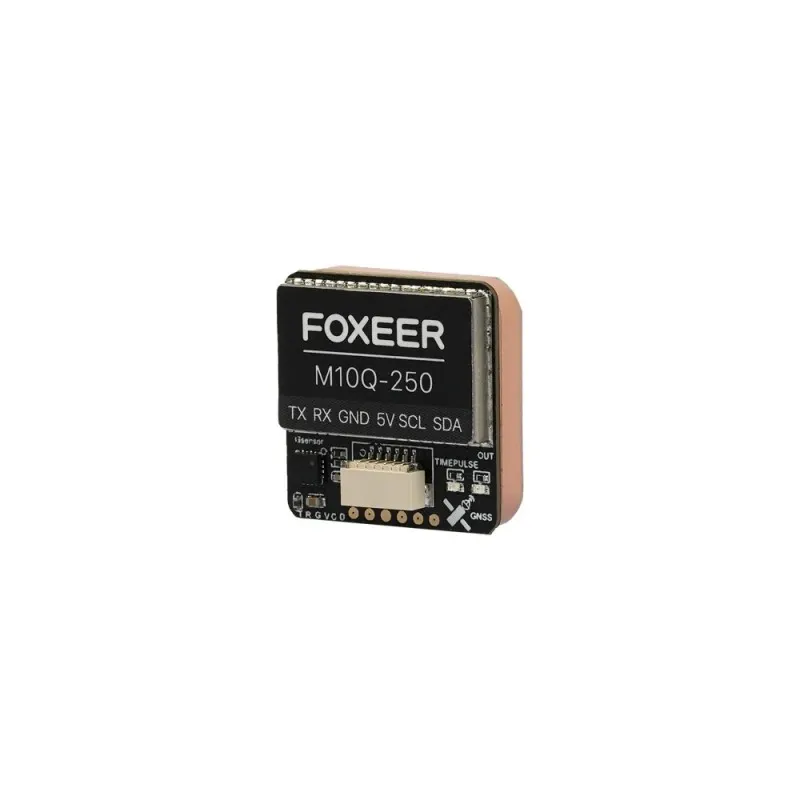

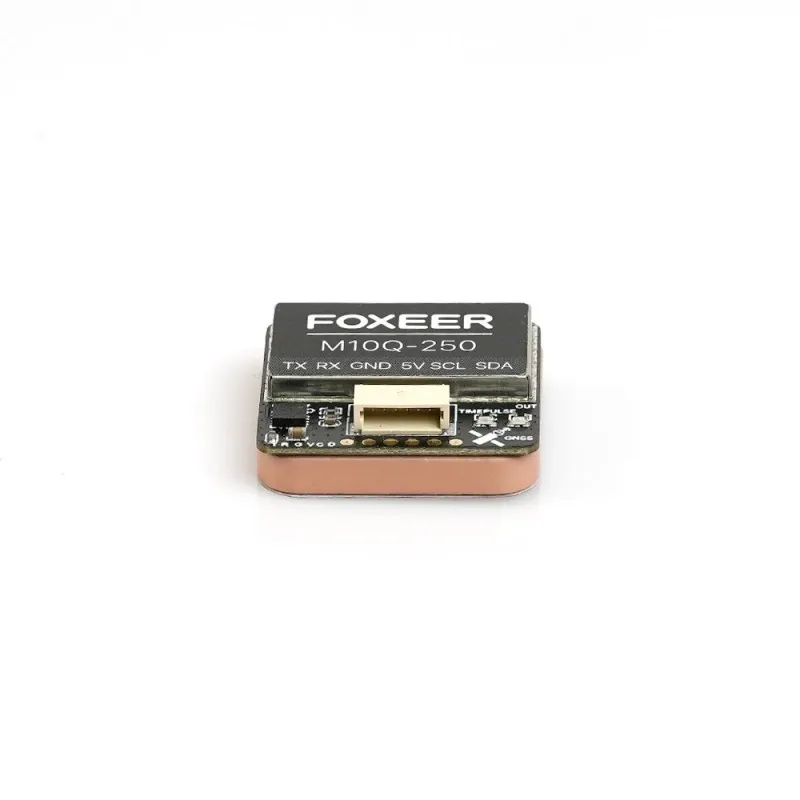

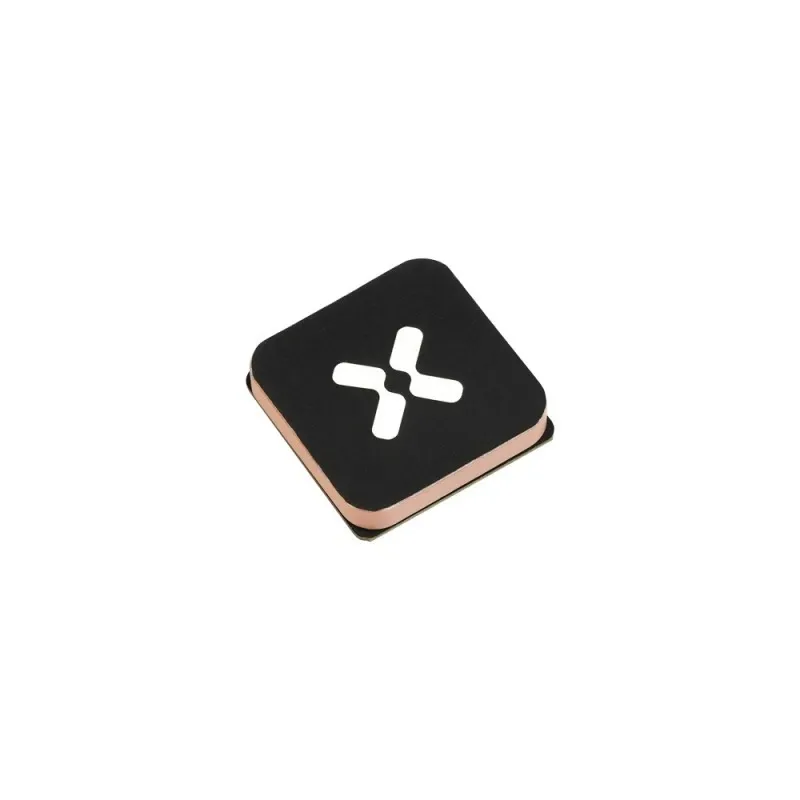

The Foxeer M10Q 250 GPS 5883 Compass is a high-quality GPS module designed to enhance navigation and orientation for a variety of applications, including drones, autonomous vehicles, and other remote-controlled systems. This module features a GPS receiver paired with a 5883 compass sensor, providing precise location tracking and accurate heading information.


ChipM10(10th Generation Chip)
FrequencyGPS L1，GLONASS L1，BDS B1，GALILEO， ESBAS L1，QZSS L1
Input Voltage5V
AntennaCeramic Antenna
Channel72
BatteryBilid-in
CompassQMC5883
Compass OrientationPlug facing direction of flight and obviously antenna up, BF: CW 90° Flip
Baud Rate115200bps
ProtocolDual NMEA/UBLOX
Output Frequency1Hz-10Hz,10Hz default
Speed Accuracy0.05m/s
Horizontal Positioning Accuracy2D ACC1.5m(outdoor)
Receiver SensitivityTrace -166dBm; Capture -160dBm
Dynamic CharacteristicsHeight 50000m; Speed 500m/s; Acceleration 4G
Operating Temperature-40C-+85C
Storage temperature-40C-+105C
Weight12g
Size25*25*8mm

1 x Foxeer M10Q 250 GPS 5883 Compass
