GEPRC GEP Mark4-10 Frame Kit for FPV Drone

(0 review)

Brand: GEPRC

  1. The extended dimension frame leaves enough space to accommodate the large-capacity battery and increases flight time.

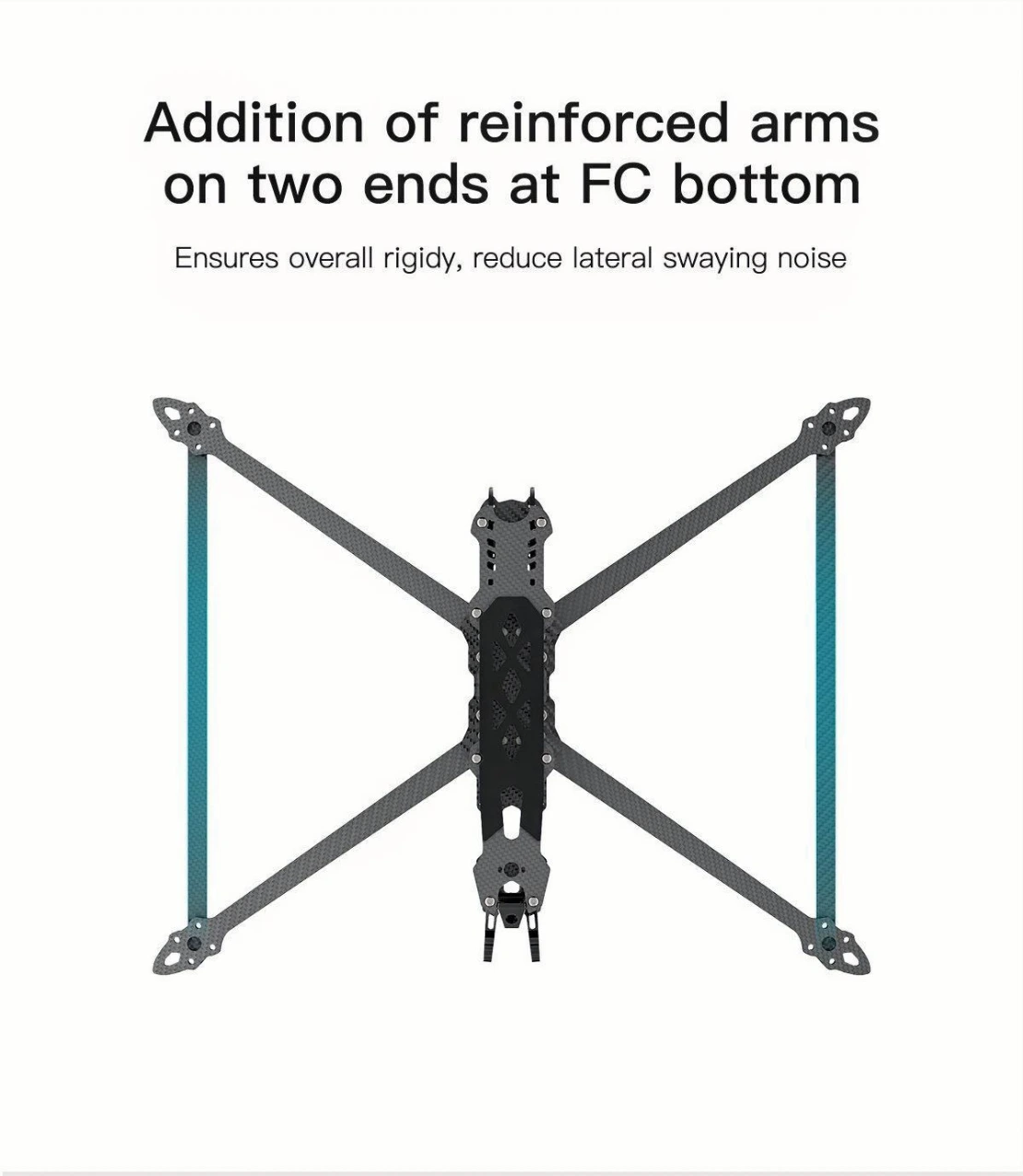

  2.  Equipped with a vertically shaped reinforced arm to enhance stabilization and reduce the impact of unsteadiness on the gyroscope.
  3.  The 3.7 mm-thick arm structure ensures the rigidity of the frame.
  4.  Adopting the 30 mm Aluminum standoff leaves sufficient stacking space.

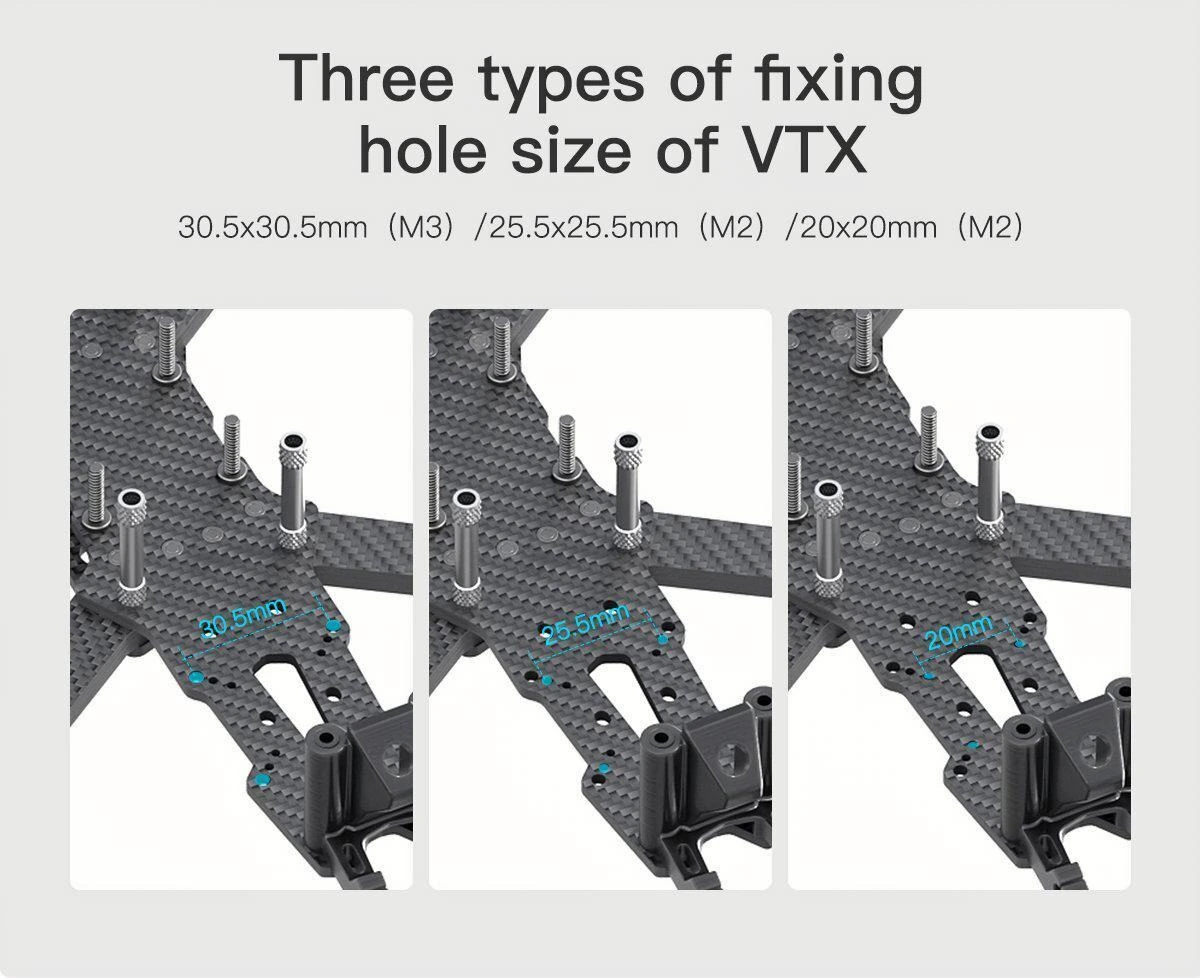

  5.  It supports three types of fixing hole sizes of VTX: 30.5×30.5mm(M3)、25.5×25.5mm(M2), 、20x20mm(M2).
Add to cart Buy now
Add to wishlist
Price
₹ 7,200.00 ₹ 7,200.00 (Tax included)

Click for  Terms and Conditions

MORE INFORMATION

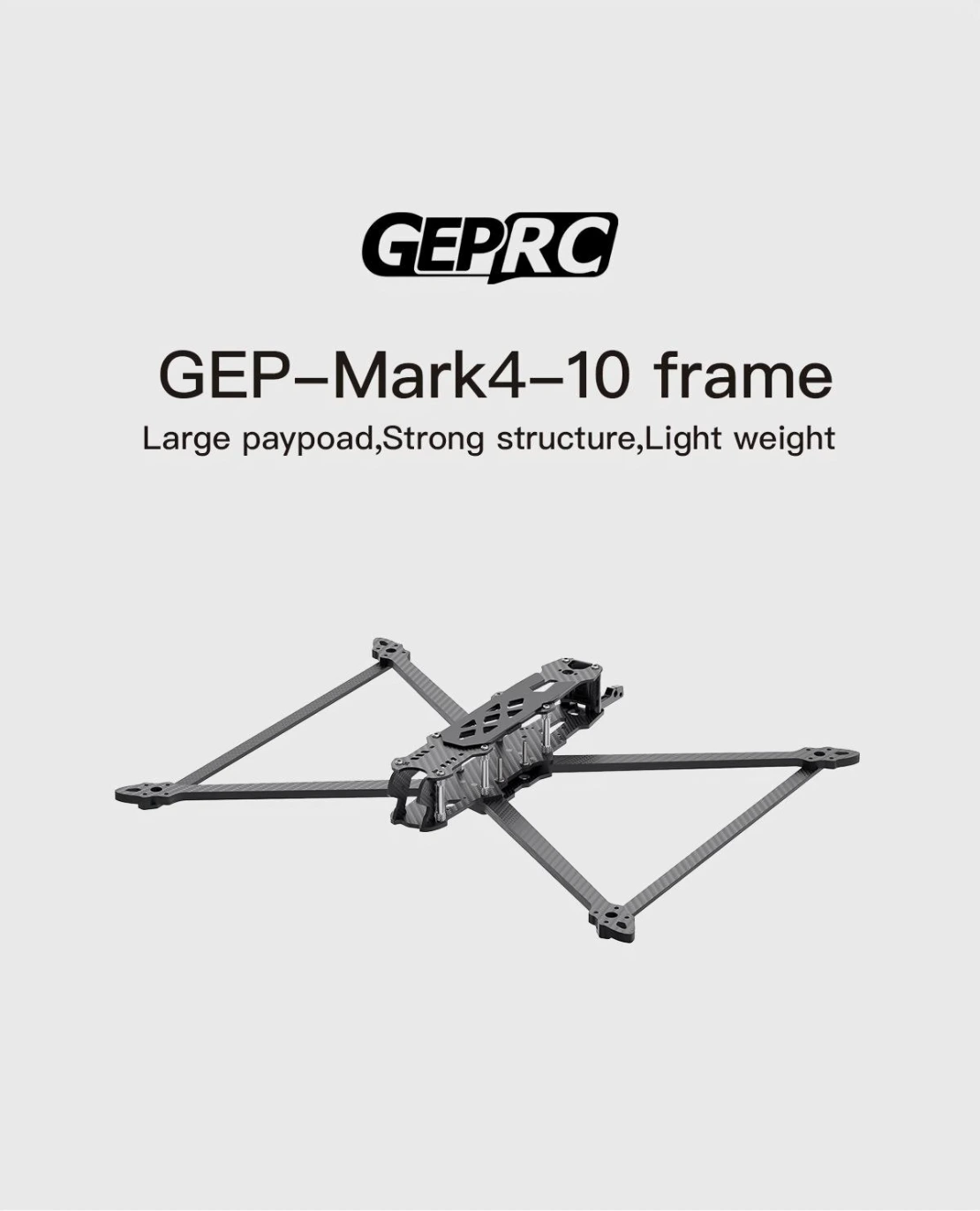

GEP-Mark-10 is a frame designed to manage heavy-load flights. It can carries a maximum payload of 3kg when applied with a 3214 or 3115 900KV motor. The light-design structure enables immediate response even when flying with extra weight.

The FC fixing hole size is 30.5×30.5mm(M3), Camera lens fixing hole size is 19×19 mm(M2), Motor fixing hole size is 19x19mm(M3). Reserved enough space for VTX installation at the end of the frame, and the extended dimension frame can mount up to a LiPo 6S 8000mah battery.

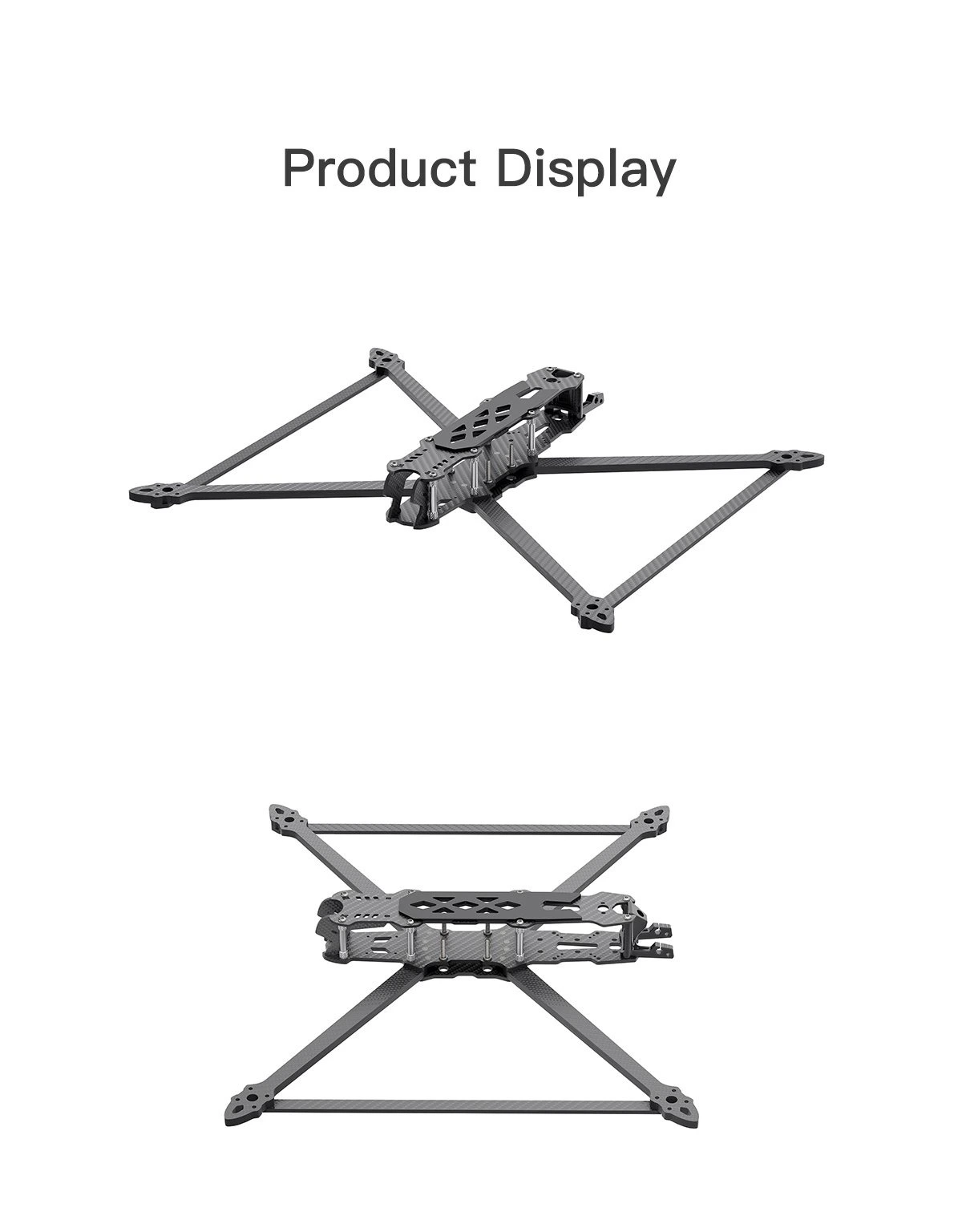

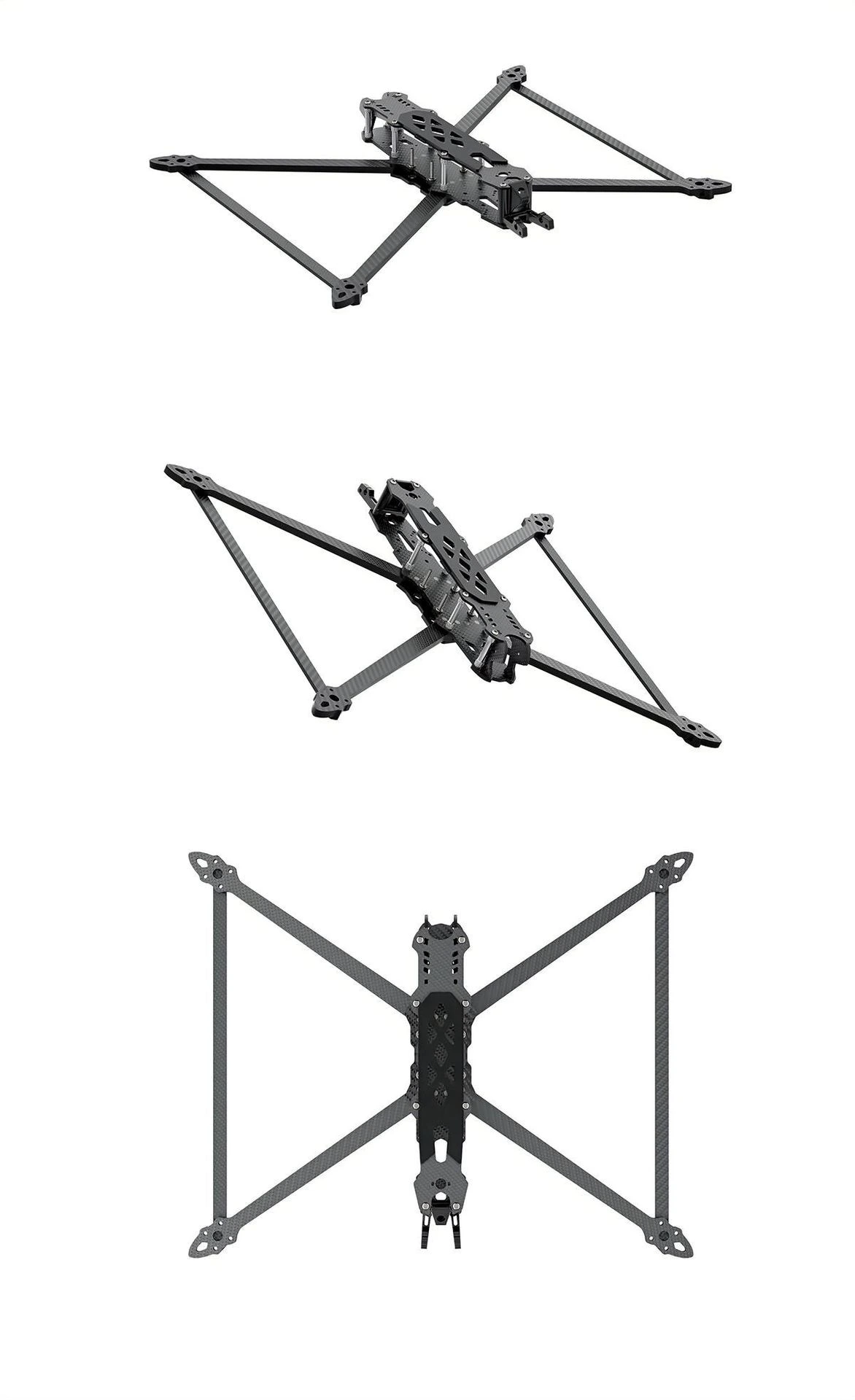

GEPRC GEP Mark4-10 Frame Kit for FPV Drone AagoshGEPRC GEP Mark4-10 Frame Kit for FPV Drone AagoshGEPRC GEP Mark4-10 Frame Kit for FPV Drone AagoshGEPRC GEP Mark4-10 Frame Kit for FPV Drone AagoshGEPRC GEP Mark4-10 Frame Kit for FPV Drone AagoshGEPRC GEP Mark4-10 Frame Kit for FPV Drone AagoshGEPRC GEP Mark4-10 Frame Kit for FPV Drone Aagosh

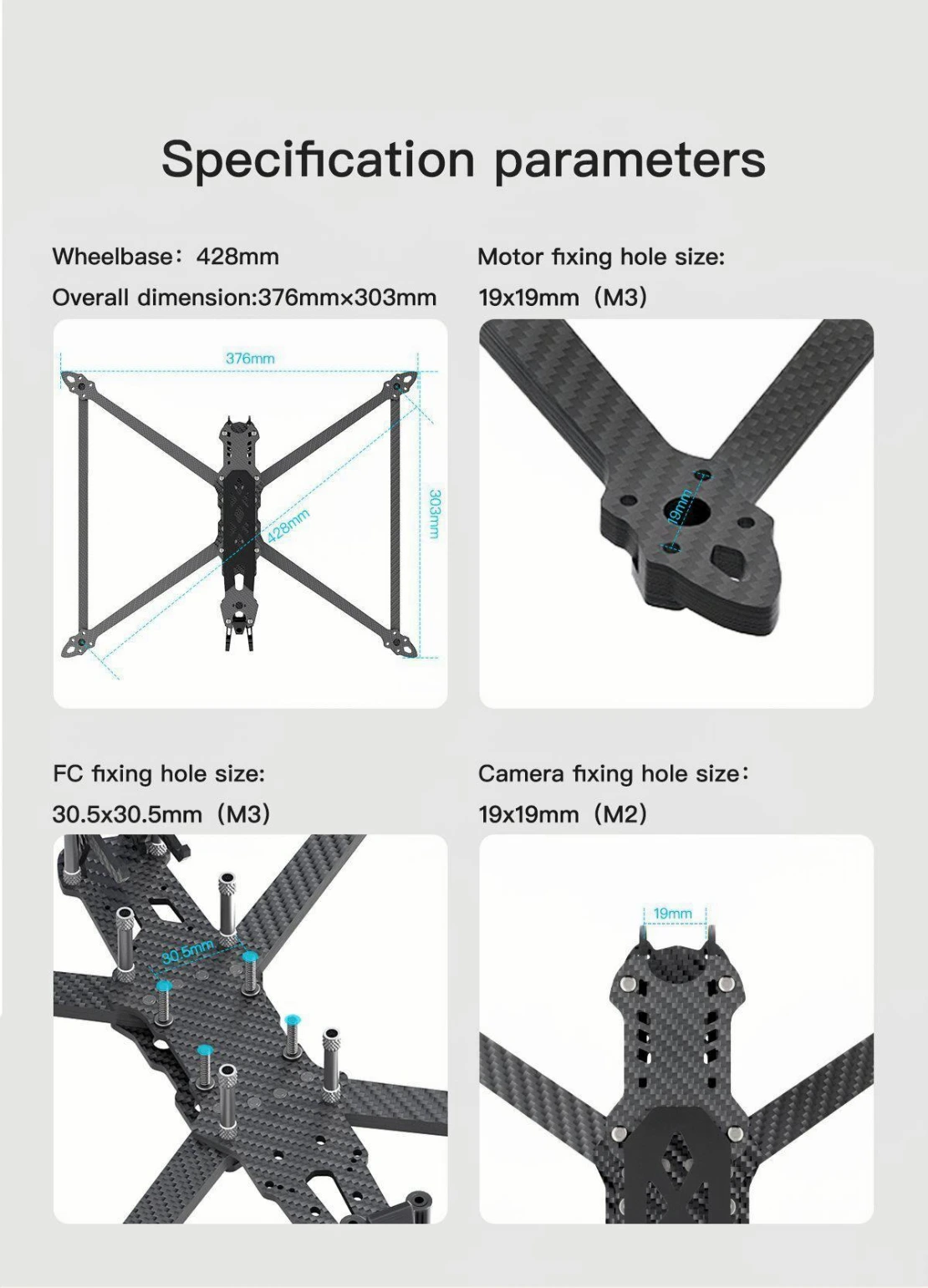

ItemGEP-Mark4-10
Frame Dimension376mm x 303mm
Motor to Motor429mm
Top Plate2mm
Base Plate3mm
Side Plate2.5mm
Arm Plate7mm
Midplate3mm
Arm Bar3mm
Camera Fixing Hole19x19mm (M2)
Motor Fixing Hole19x19mm (M3)
FC Fixing Hole30.5x30.5mm (M3)
VTX Fixing Hole30.5x30.5mm (M3) / 25.5x25.5mm (M2) / 20x20mm (M2)
Weight270.0g

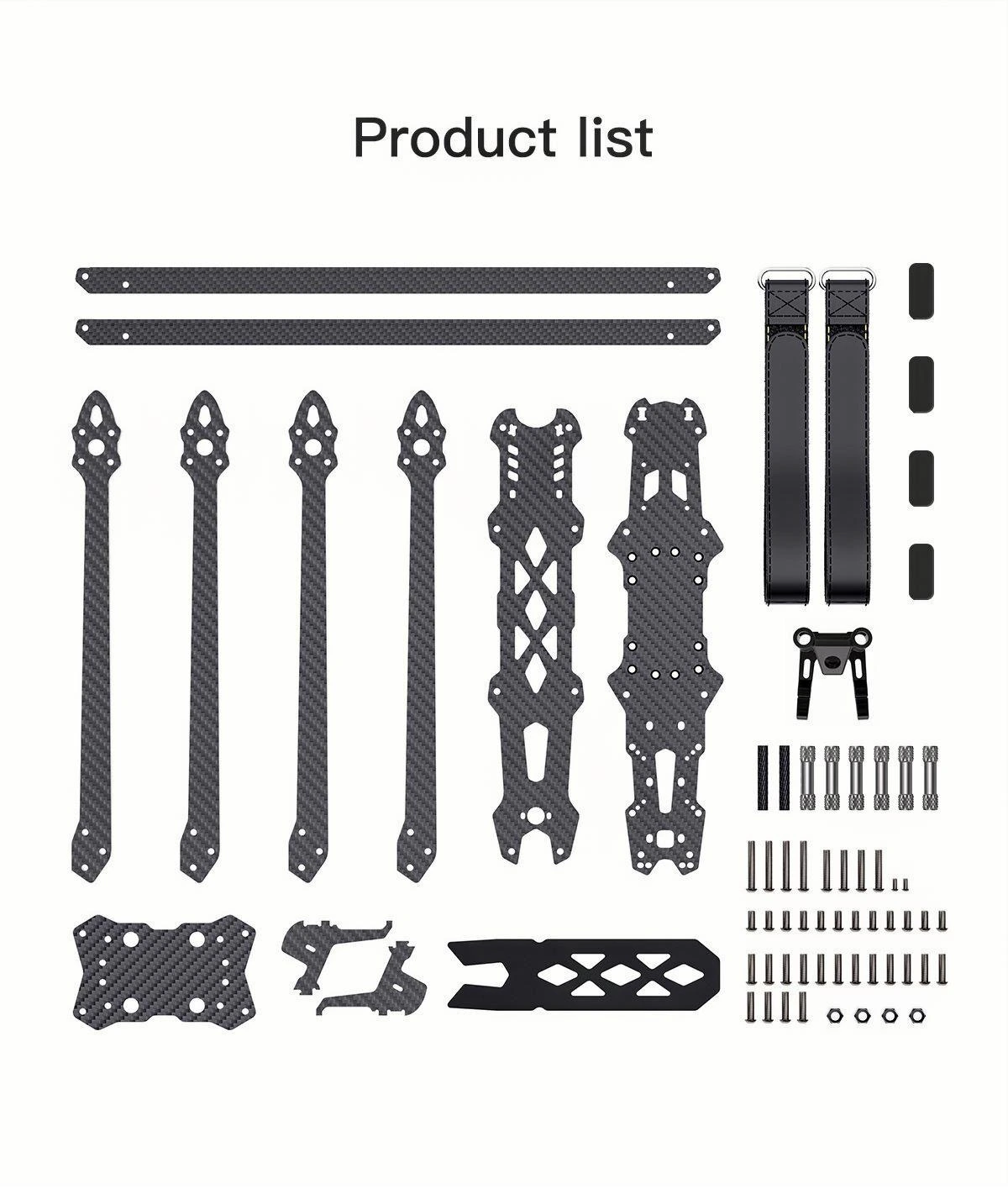

1x GEP-Mark4-10 Frame

1x M20*300mm battery strap

1x Battery Silicone anti-slip Pad

4x EVA landing Pads
