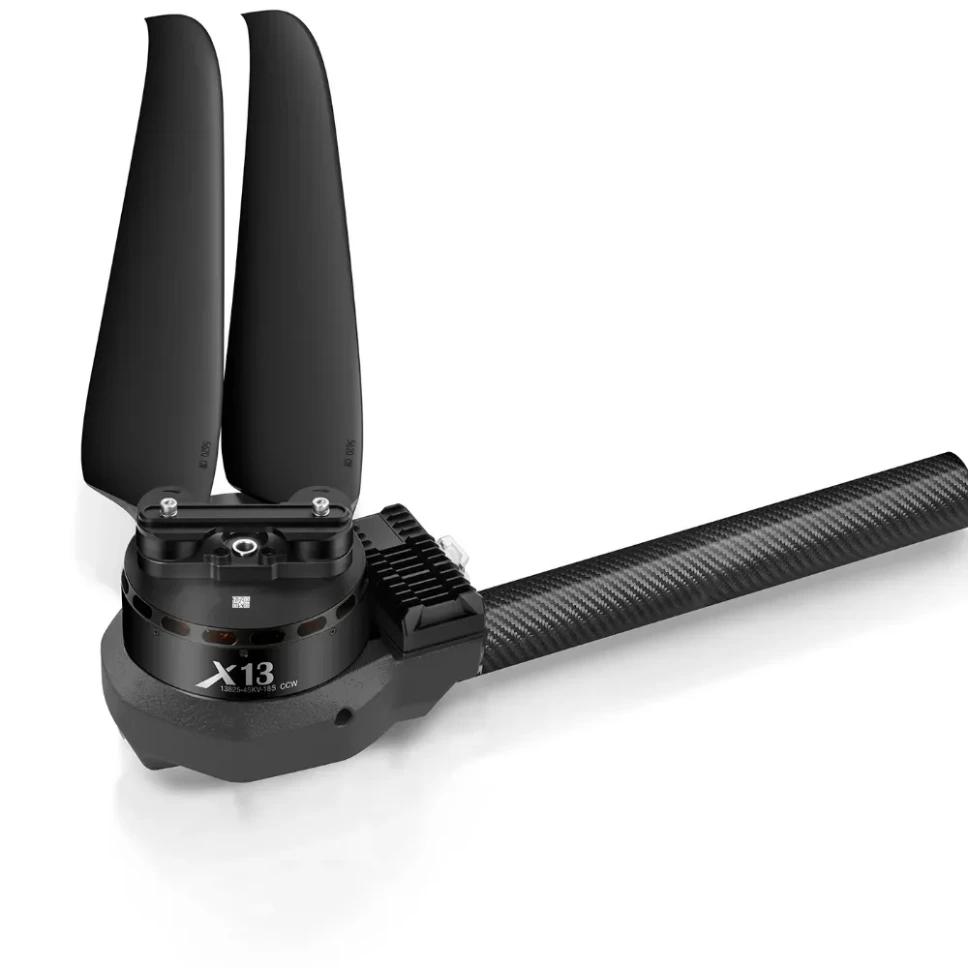

The Hobbywing XRotor X13 Power System Combo (CW) is a high-performance, integrated propulsion solution for large agricultural drones requiring exceptional thrust, efficiency, and reliability. Optimized for heavy-lift applications, it combines a powerful motor, smart ESC, and high-efficiency propeller to deliver stable flight, even under demanding field conditions.
Features:
Massive Thrust Capacity: Supports heavy payloads typical in spraying, seeding, and mapping missions.
Integrated Design: Motor, ESC, and propeller are optimized to work together seamlessly.
High Voltage Compatibility: Operates with high-voltage 18S LiPo setups for greater efficiency and power.
Weather Resistant: IPX6 rating ensures protection against water spray and dust.
Advanced ESC Protection: Includes overcurrent, overheating, and signal loss protection for flight safety.
Precision Engineering: Uses Japanese-imported bearings and high-strength materials for longevity.
Product Name
XRotor X13-14S
XRotor X13-18S
Maximum Thrust
54kg
56kg
Recommended Takeoff Weight
25-27kg/rotor
25-27kg/rotor
Recommended LiPo Battery
12-14S( LiPo)
18S( LiPo)
Operating Temperature
-20℃~50℃
-20℃~50℃
Waterproof Rating
IPX6
IPX6
Motor
KV Rating
60rpm/V
45rpm/V
Stator Size
138*25mm
138*25mm
Tube Diameter
Φ50mm
Φ50mm
ESC
Support Battery
12-14S
18S
PWM Input Signal Level
3.3V/5V
3.3V/5V
Throttle Signal Frequency
50-500Hz
50-500Hz
Operating Pulse Width
1050-1950us
1050-1950us
Max. Input Voltage
65V
81V
Max. Peak Current
200A(Unsealed ambient temperature≤60℃)
200A(Unsealed ambient temperature≤60℃)
Propeller
Diameter×Pitch
56*20
56*20
1 X Hobbywing Xrotor X13 Power System Combo For Agricultural Drones CW
