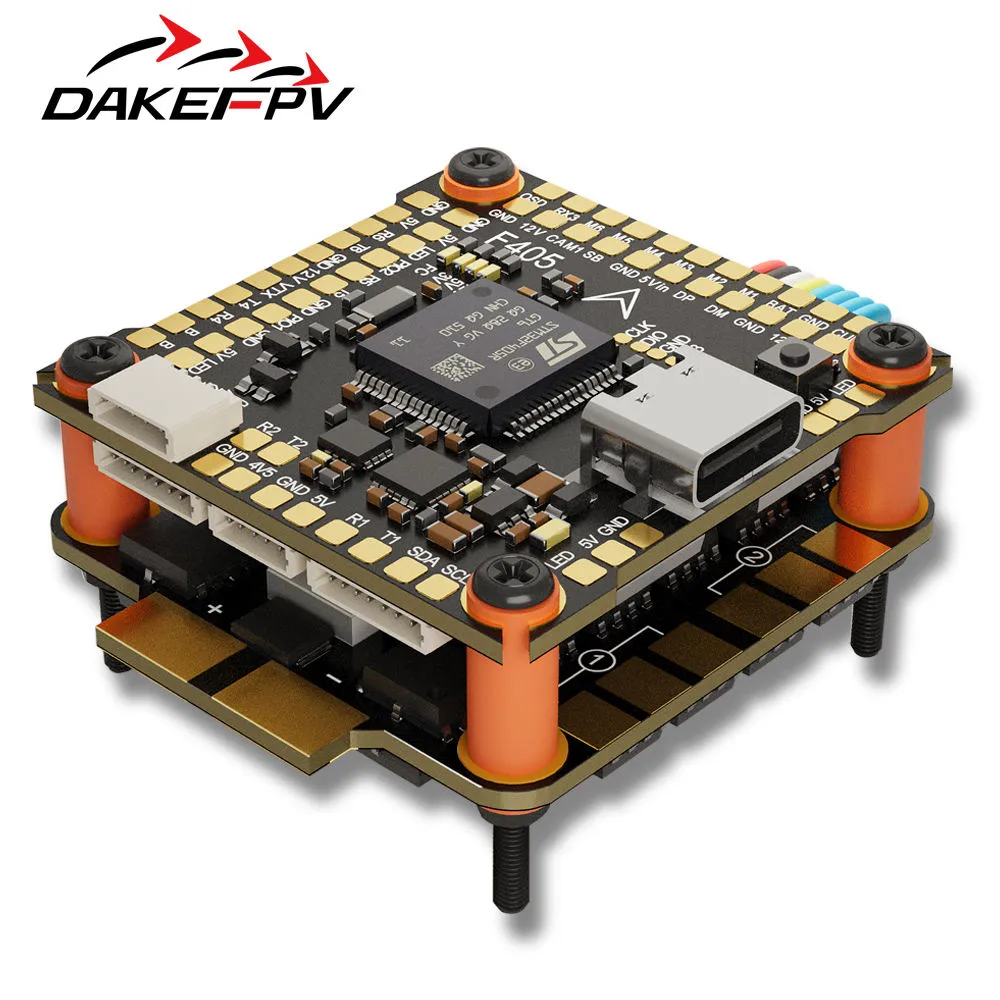

DAKEFPV F405 Flight Controller & 8S 70A 4-in-1 ESC Stack Dual Cam Switching(Mission Planner/Betaflight/Inav)

DAKEFPV F405 Flight Controller & 8S 70A 4-in-1 ESC Stack Dual Cam Switching(Mission Planner/Betaflight/Inav)

(0 review)

Brand: DAKEFPV

  • STM32F405 32-bit processor
  • Dual ICM42688 gyroscopes for precise flight stabilization
  • Integrated SPL06 barometer
  • AT7456E OSD chip for analog FPV systems
  • 16MB onboard Blackbox flash memory
  • Up to 8 UARTs for GPS, telemetry, receivers, VTX control, and peripherals
  • Supports up to 13 PWM outputs for advanced aircraft configurations
Add to cart Buy now
Add to wishlist
Price
₹ 8,500.00 ₹ 8,500.00 (Tax Excluded)

Click for  Terms and Conditions

MORE INFORMATION

The DAKEFPV F405 Flight Controller Stack combines a powerful STM32F405-based flight controller with a high-performance 8S 70A 4-in-1 ESC, making it an ideal solution for FPV drones, long-range UAVs, aerial mapping platforms, and autonomous aircraft. Featuring dual-camera switching, multiple UARTs, onboard Blackbox logging, barometer support, and compatibility with Betaflight, INAV, and ArduPilot (Mission Planner), this stack delivers exceptional flexibility for both racing- and navigation-focused drone builds.
DAKEFPV F405 flight controller 8S 70A 4-in-1 ESC stack India DAKEFPV F405 STM32 flight controller bottom view

DAKEFPV F405 ESC stack wiring connection diagram

🖥️ Firmware Compatibility

Supports all three major ecosystems:

  • Betaflight (racing/freestyle)
  • INAV (navigation/long-range)
  • ArduPilot / Mission Planner (autonomous UAV, mapping)
ParameterSpecification
MCUSTM32F405
GyroscopeDual ICM42688
BarometerSPL06
OSDAT7456E
ESC Current70A Continuous / 75A Peak
ESC FirmwareBLHeli_S / Bluejay
Battery Support3S–8S LiPo
Motor ProtocolsDShot300, DShot600, PWM, Bi-Directional DShot
UARTsUp to 8 UARTs
Blackbox16MB Flash
Camera InputDual Camera Switching
Mounting Pattern30.5 × 30.5mm
ApplicationFPV, Long Range, UAV, Mapping Drones

1 × DAKEFPV F405 Flight Controller

1 × DAKEFPV 8S 70A 4-in-1 ESC

1 × Connection Cable Set

1 × Capacitor

1 × Mounting Hardware Kit
