Hex Herelink HD Video Transmission System V1.1 2.4GHz Long Range

(0 review)

Brand: Hex Cubepilot

1. HD Video Transmission

Transmit live HD video from your drone to the ground controller.

2. Long-Range RC Control

Control your UAV through the integrated Herelink radio controller.

3. MAVLink Telemetry

Receive flight data and communicate with compatible autopilots through MAVLink.

Add to cart Buy now
Add to wishlist
Price
₹ 3,40,000.00 ₹ 3,40,000.00 (Tax Excluded)

Click for  Terms and Conditions
Contact Us

MORE INFORMATION

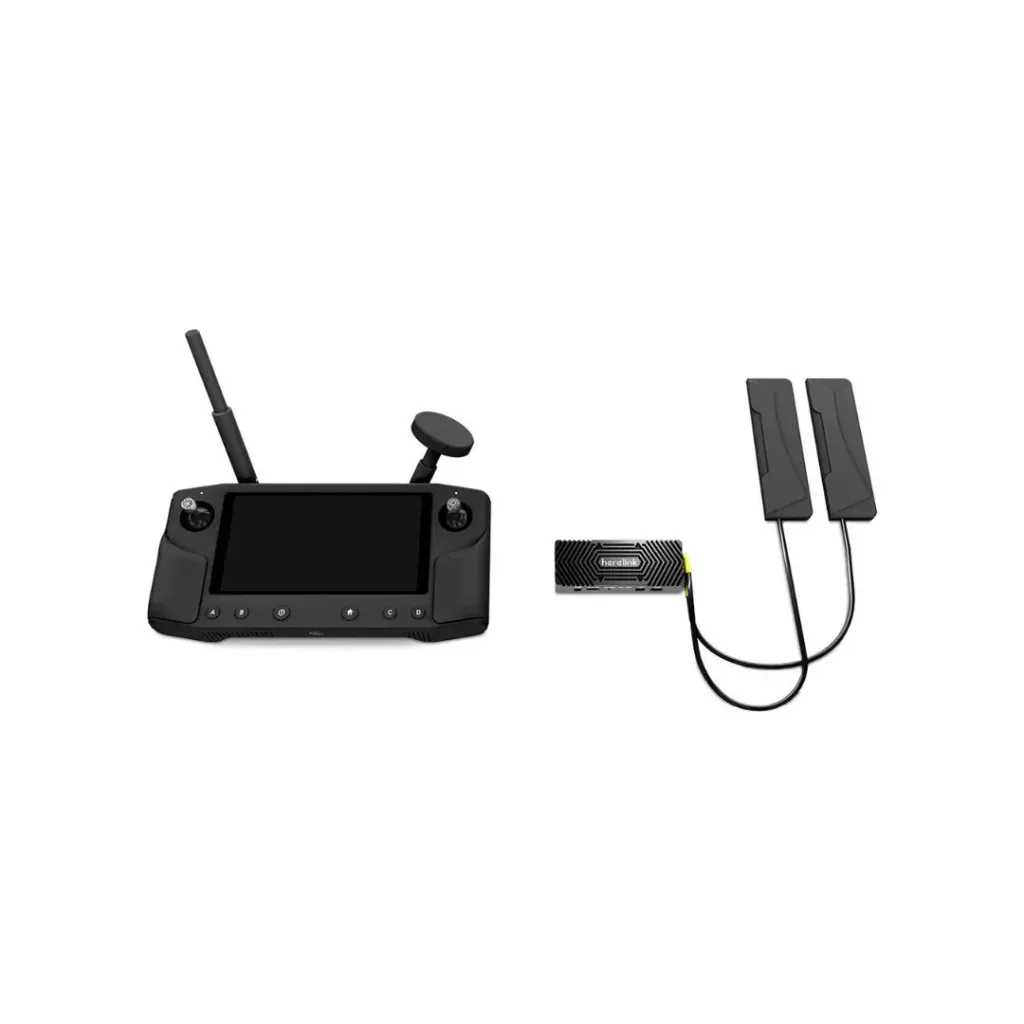

Hex Herelink V1.1 is an integrated 2.4GHz long-range HD video transmission, RC control, and MAVLink telemetry system designed for professional drones, UAVs, VTOL aircraft, and autonomous vehicles.

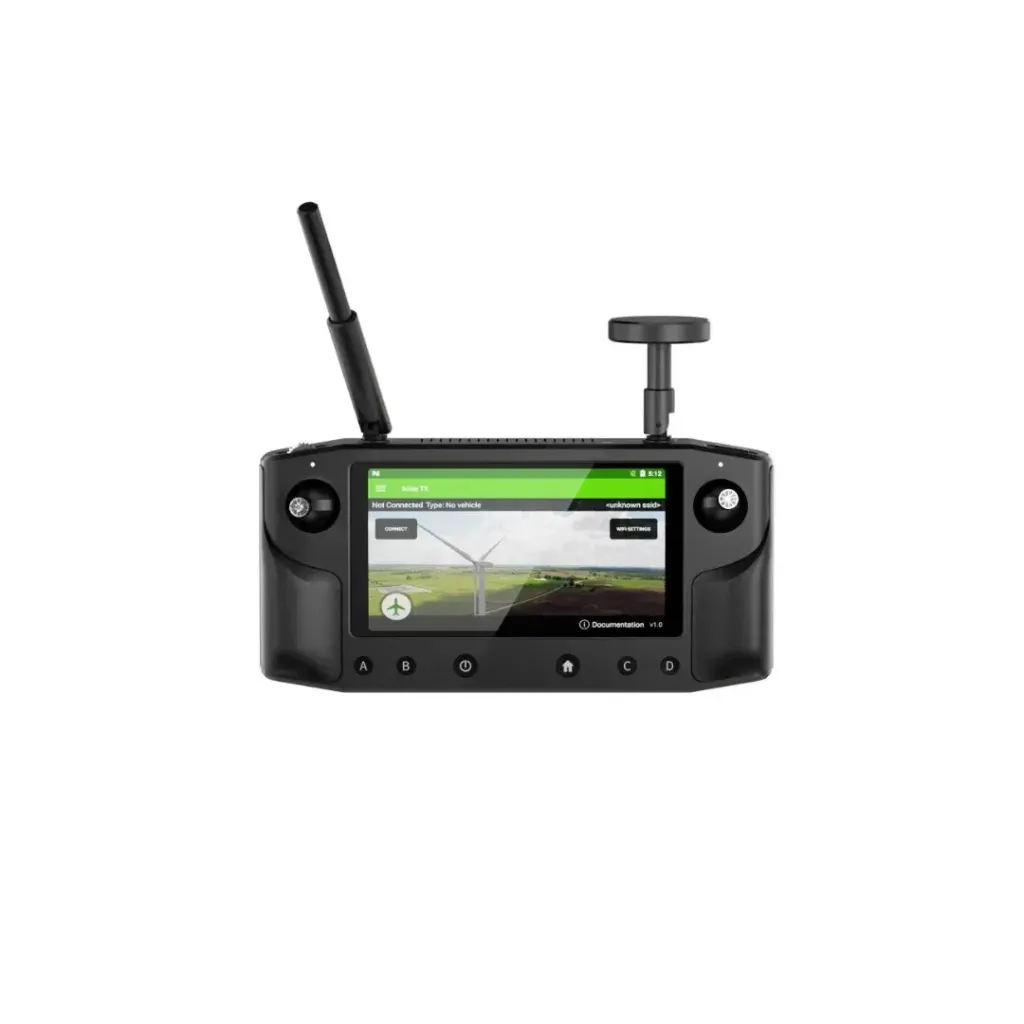

It supports HD video up to 1080p at 60fps, long-range communication up to 20 km under FCC specifications, and approximately 110 ms video latency. The system includes a dedicated Air Unit and a 5.46-inch 1080p ground controller with a high-brightness 1000-nit display.

Herelink V1.1 is compatible with ArduPilot, PX4, and MAVLink-based flight controllers, making it suitable for professional UAV development, mapping, inspection, surveillance, agriculture, and long-range drone applications.

Brand: Hex / Herelink
Model: Herelink V1.1
Product Type: Long Range HD Video & Data Transmission System
Frequency: 2.4GHz ISM
Application: UAV, Drone, VTOL, Fixed-Wing, ArduPilot, PX4

SpecificationDetails
BrandHex / Herelink
ModelHerelink V1.1
Product TypeHD Video & Data Transmission System
Frequency2.4GHz ISM
Transmission RangeUp to 20km FCC
CE/SRRC/MIC RangeUp to 12km
Video Resolution720p @ 30fps / 1080p @ 30/60fps
Video LatencyApprox. 110ms
Receive Sensitivity-99dBm @ 20MHz BW
Video Inputs2 × Micro HDMI
TelemetryMAVLink
RC InterfaceSBUS / iBUS depending on configuration
Air Unit RAM1GB LPDDR3
Controller RAM2GB LPDDR3
Air Unit Storage4GB eMMC
Controller Storage8GB eMMC
Air Unit DimensionsApprox. 78.5 × 30 × 15mm
Controller Dimensions217 × 106.5 × 31mm
Controller Display5.46-inch 1080p
Display Brightness1000 nits
Controller Battery4950mAh LiPo
Controller WeightApprox. 536g
CommunicationWi-Fi / Bluetooth / GPS
Flight ControllerArduPilot / PX4 / MAVLink compatible

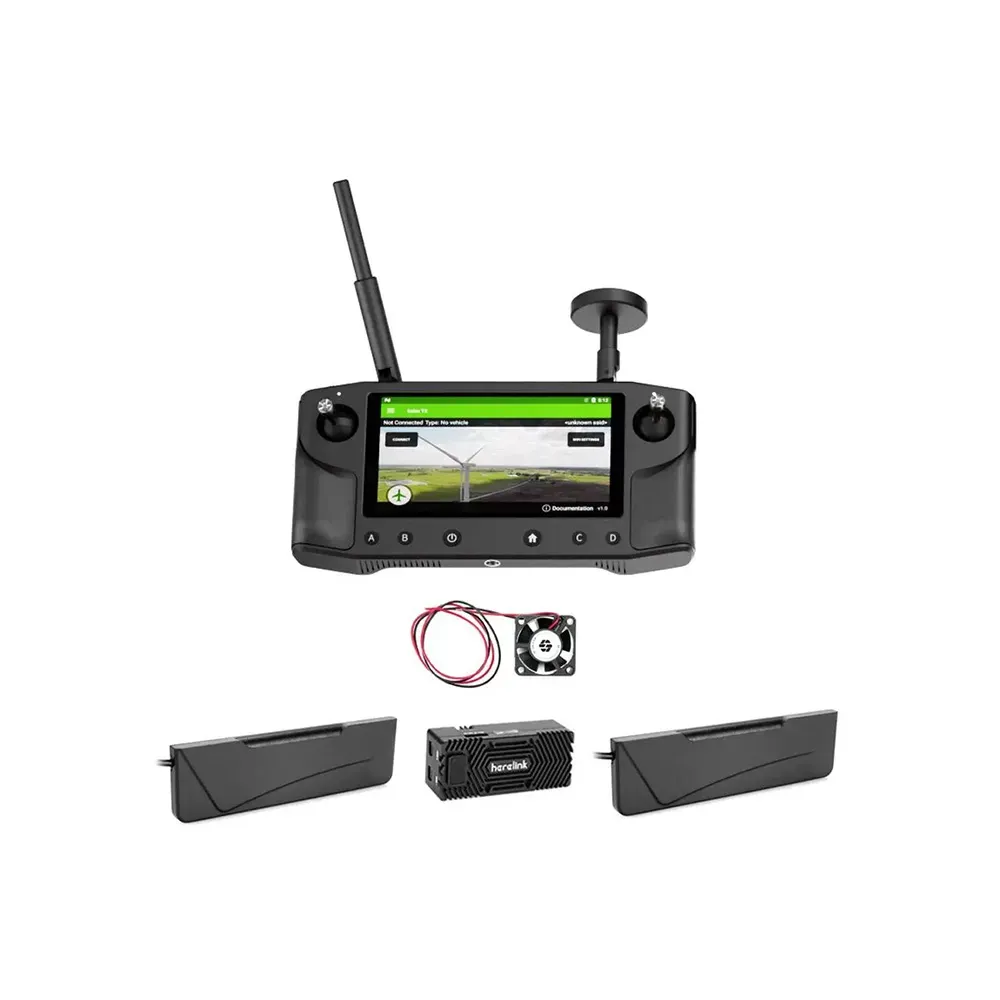

1 X Hex Herelink HD Video Transmission System V1.1 2.4GHz Long Range & Air Unit.
