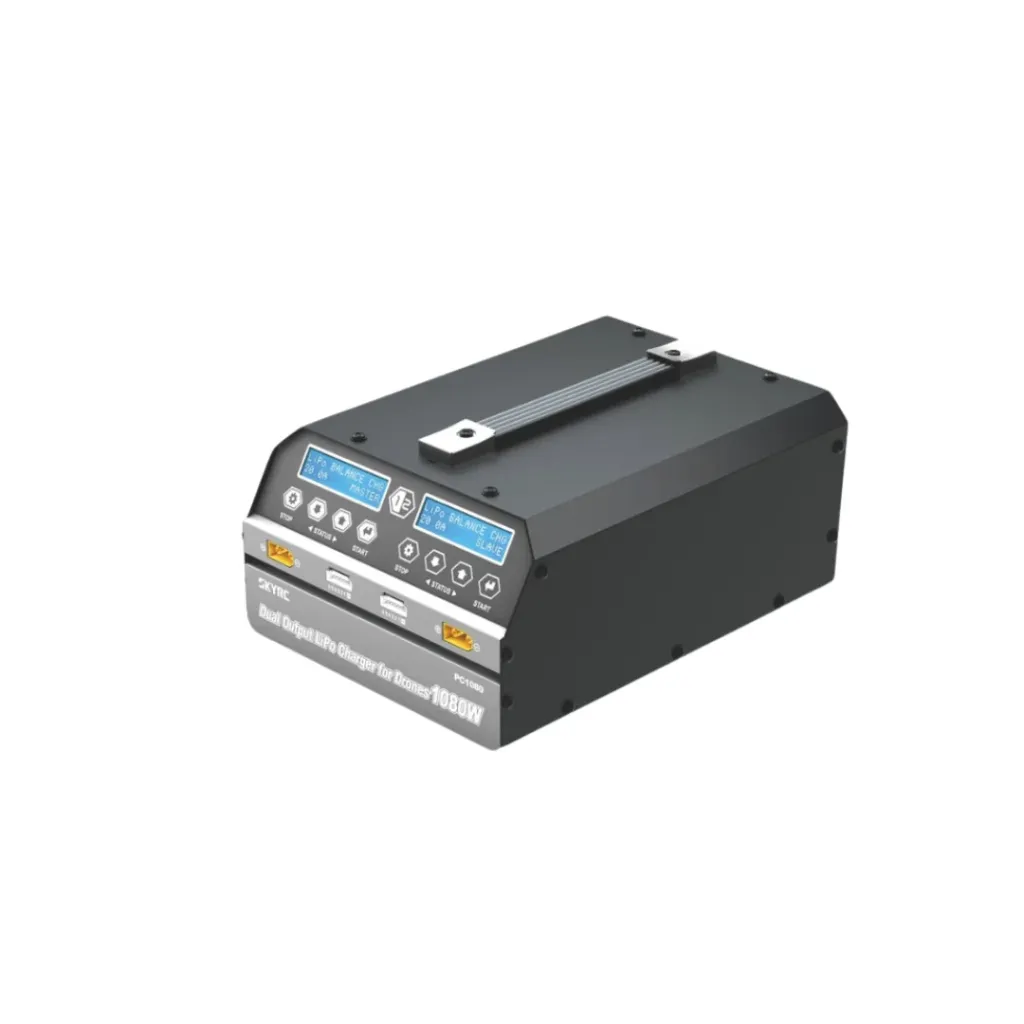

SKYRC PC1080 Dual Channel LiPo Battery Charger

This is a dual-channel 6S LiPo charger for industrial drones. It has reliable, safe, and easy-to-use features, such as a battery voltage meter, internal resistance meter, LiHV charging mode, and synchronization mode.

You can use this charger to balance charge two 6-cell battery packs at the same time. It is designed for large battery packs. It also has a master-slave control mode that lets you sync more than one charger for the same batteries. It uses a 32-bit high-speed CPU from STMicroelectronics that boosts its processing speed by 20 times.

PC1080-6S

Maximum Charge Power

1080W

Maximum Charge Current

20ASkyRC PC1080 is a dual-channel 6S LiPo charger for industrial application drones. It is reliable, safe, and easy to operate while with comprehensive functionality, like battery voltage meter, internal resistance meter, LiHV charging mode, and the time-saving synchronization mode. Balance Charge

(6S LiPo)

Synchronous Mode Battery Voltage Meter Battery Resistance Meter

 Maximum Safety AC Input Storage Mode Firmware updateSophisticated industrial and

Mechanical design optimizes the space.

Selecting components from well-known brands,

guarantees stable quality and durability.

With 32-bit high-speed MCU, enhanced performance and functional capabilities are delivered! High Frequency CapacitorUsing high spec large capacitor ensures the charger can work properly for longer period of time. Active PFC uses circuitry to correct the amount of power drawn to achieve the best power factor ratio, achieving high efficiency of 93%, which makes the product more stable and reduces interference with the power grid. Switched-mode Power Supply accepts power from mains supplies throughout the world. Conformal Coating Conformal coating helps electronics withstand harsh environments and protects them against moisture, dust, chemicals, corrosive attack, and temperature extremes, etc. It also ensures PC1080 has stable performance in the field. Active PFC uses circuitry to correct the amount of power drawn, achieving the best power factor ratio and high efficiency (93%). This makes the product more stable and reduces the interference to the power grid. Without PFC

AC Input Power

100%

DC Output Power

70%With PFC

AC Input Power

100%

DC Output Power

93%Automatically Charging 12 Packs of Batteries in SequencePC1080 pairing with G630neo charging hubs, an automatic charging management system, can charge 12 packs of LiPo batteries in sequence, according to their remaining capacity (percentage); the one with the highest capacity will be charged first (both channels apply the same rule).

Dual Ball Bearing High Speed Cooling Fans Dual ball bearing high speed cooling fans with wing-type blade design provide good ventilation and a cool working condition.High-density fin-type aluminum heatsink. Fin-type design, large surface, greatly improving heat dissipation, ensures long-time stable working performance.LiPo & LiHV Supported. It can fast charge, balance charge, and store both LiHV and LiPo batteries. Press the “UP” and “DOWN” keys together to switch battery type.3 Working Modes

FAST CHARGE

The science of the allocation of fast, full-time, and balanced time

BALANCE CHG

High accuracy balance battery voltage, automatic regulation

STORAGE

The maximum discharge power is 50W, automatic discharge

Experienced Engineering Support Hardware and firmware experienced times of optimization, to make the performance of the charger more stable and reliable. And it supports firmware upgrades for adding new functions and/or further optimization. Maximized Safety Protection. It has short-circuit protection, reverse polarity protection, and over-temperature protection. And it complies with the required regulations of CE, RoHS, and FCC, proving to be safe and reliable for the intended usage.

Multi-Charger Synchronization This function enables the user to control 2 or more PC1080 chargers at the same time via datacable. All the SLAVE channels will follow the settings of the MASTER channel, which saves much time while charging a bunch of similar batteries. Battery Internal Resistance Meter. With this function, the internal resistance of each cell will be displayed on the screen. Internal resistance is a key feature that reflects the health status of the battery; the lower internal resistance indicates the higher battery quality. Also, this value can help you pair your batteries. Battery resistanceTotal resistanceWhat’s in the BoxPC1080AC Power CordInstruction ManualOptional Part
